Description:

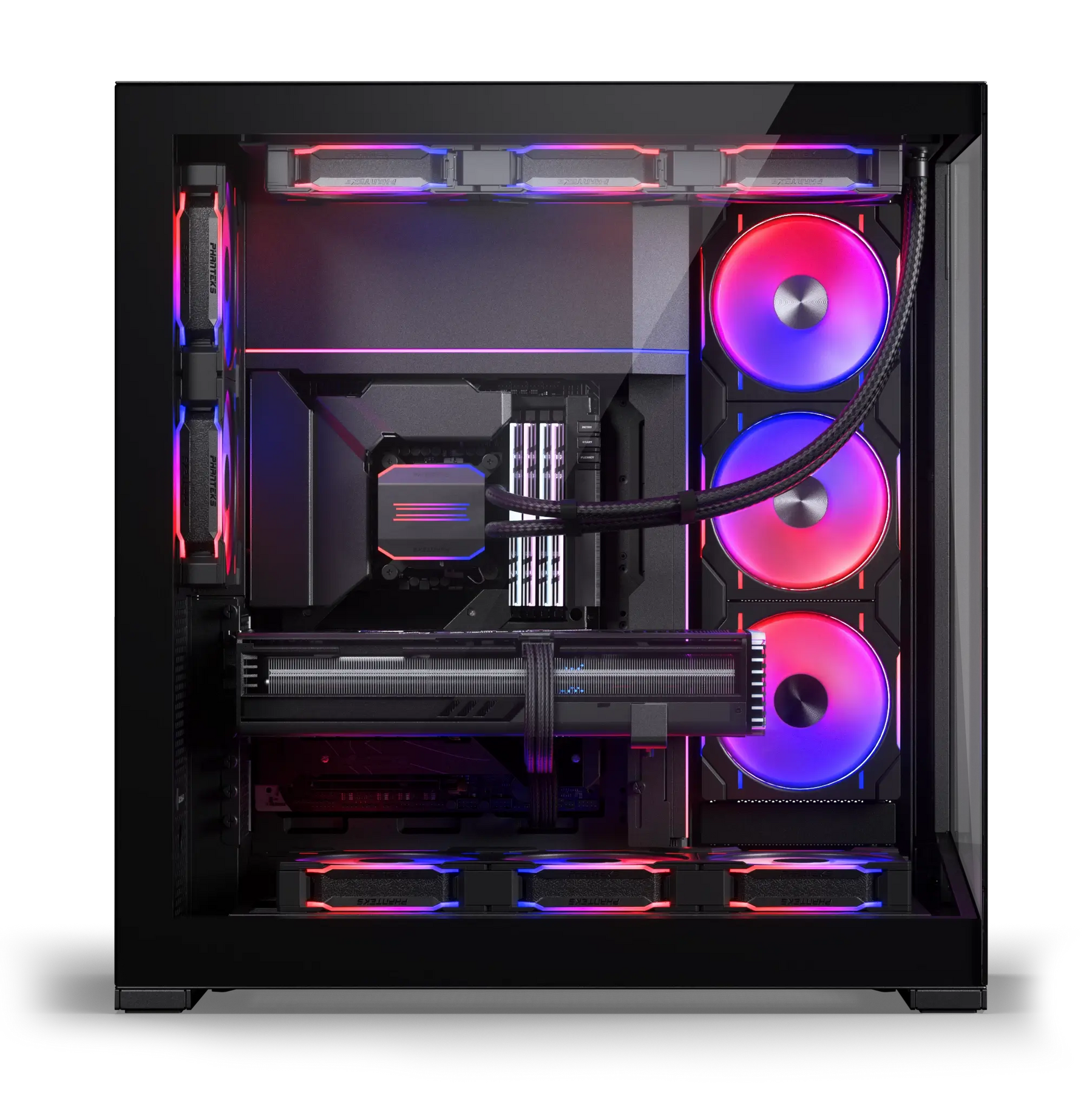

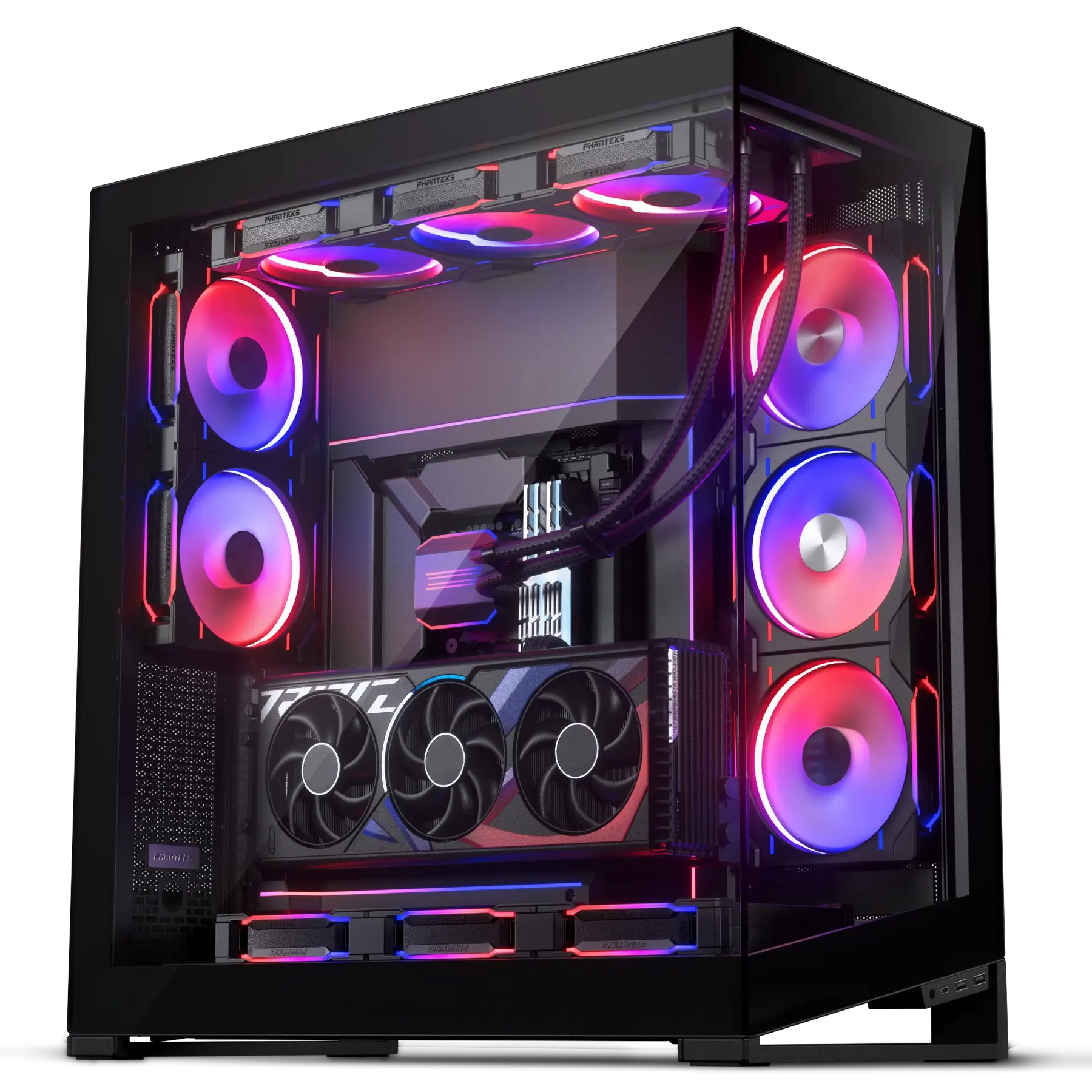

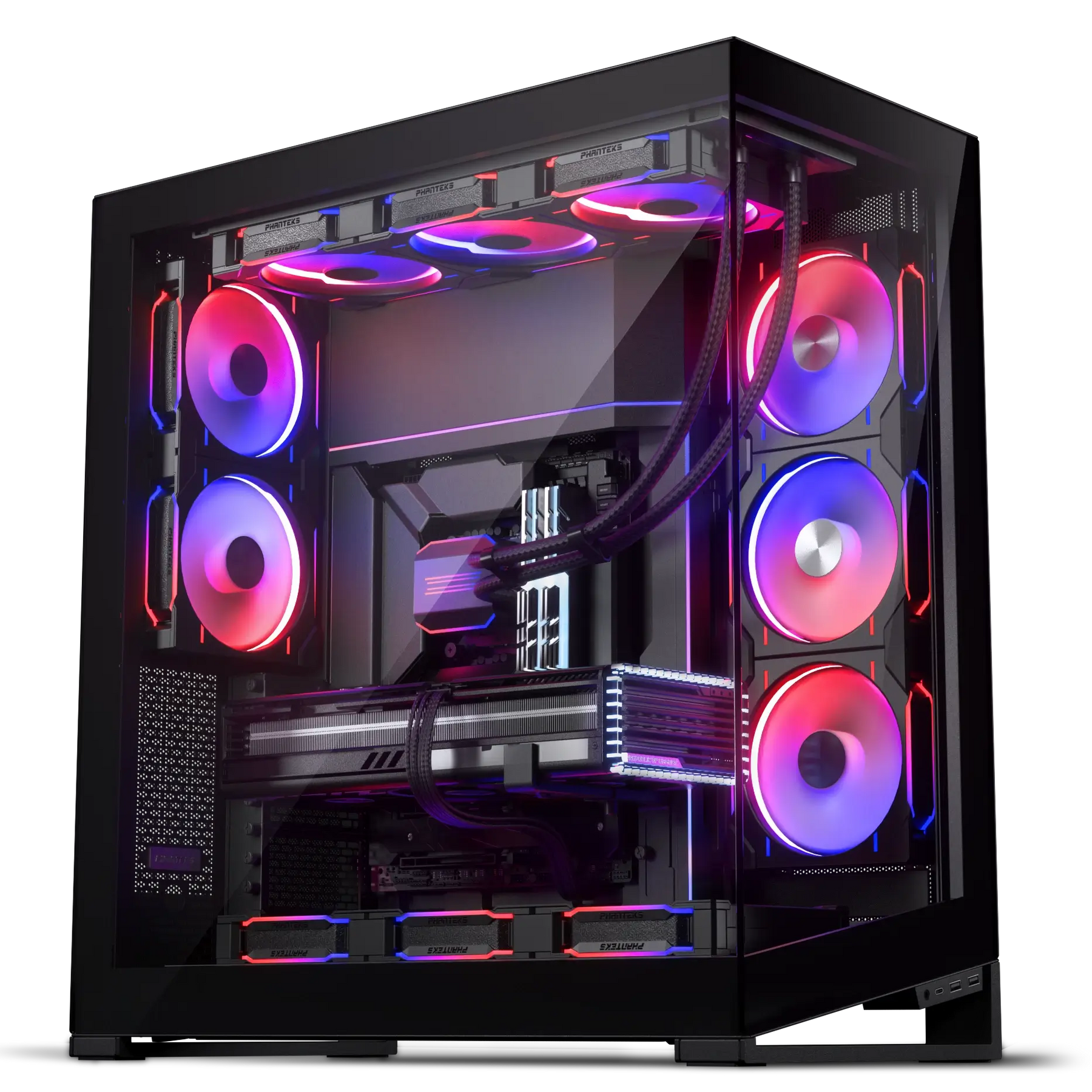

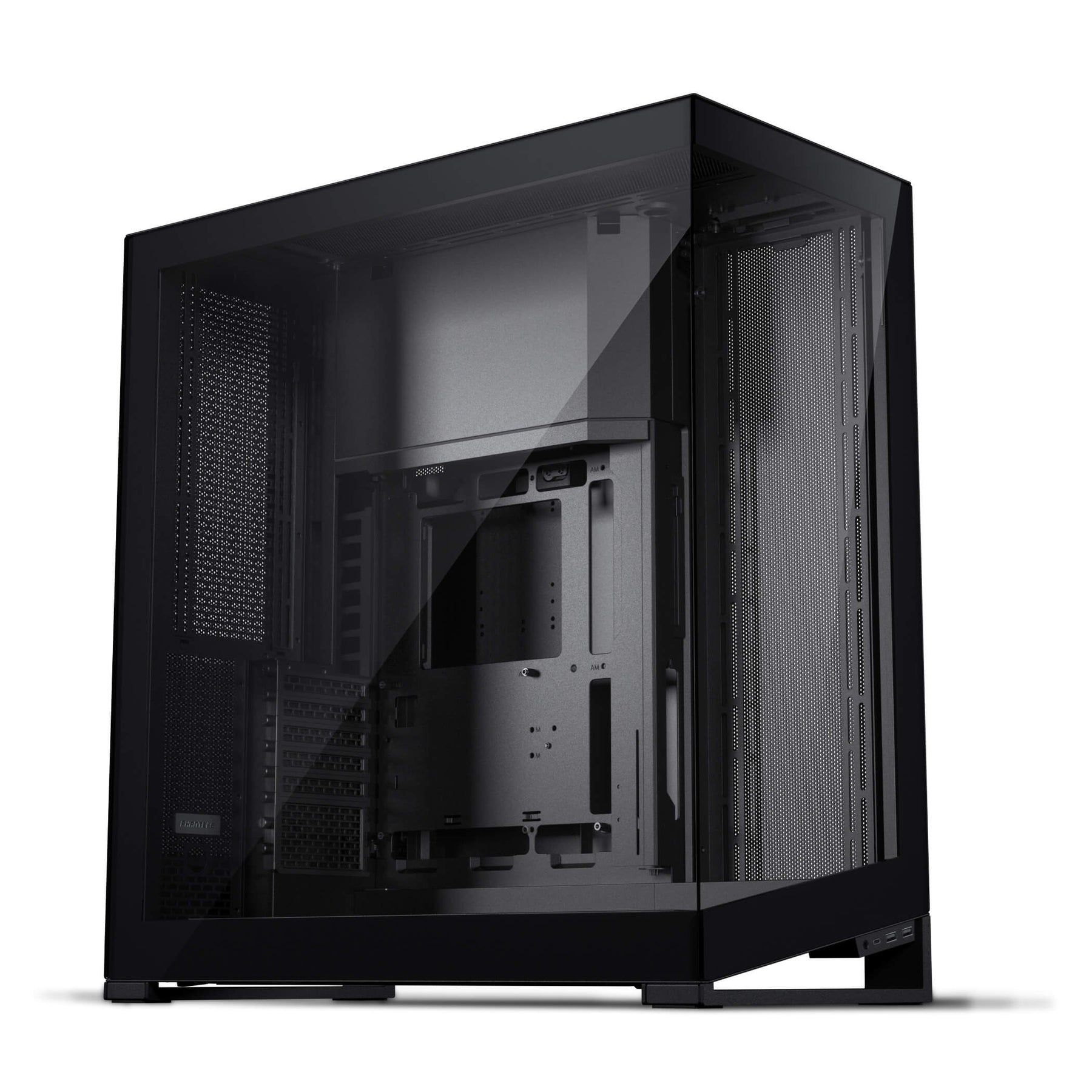

The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for Eleven 140mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the motherboard at its center. Combined with a strong and defining outer frame it captures and accentuates the hardware components.

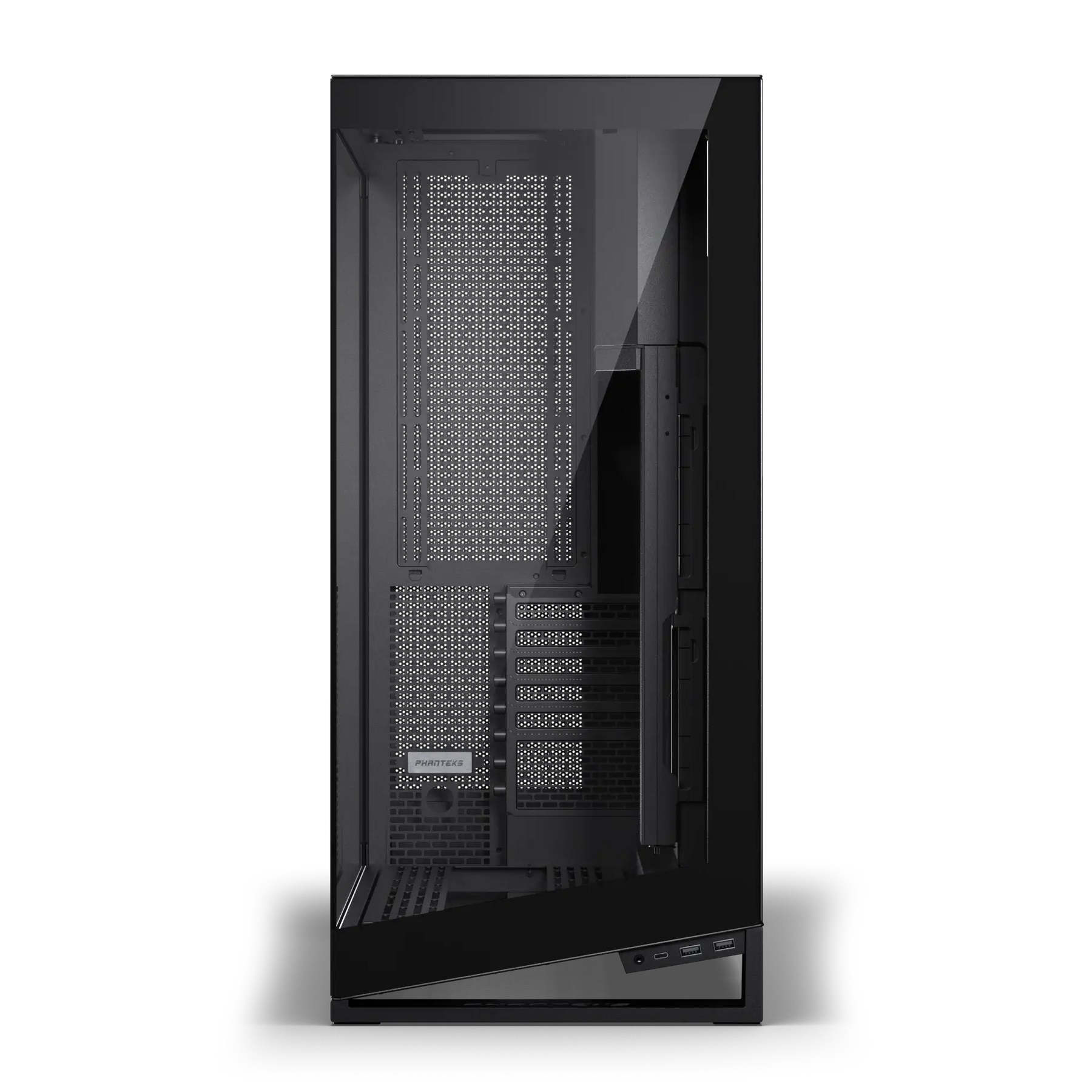

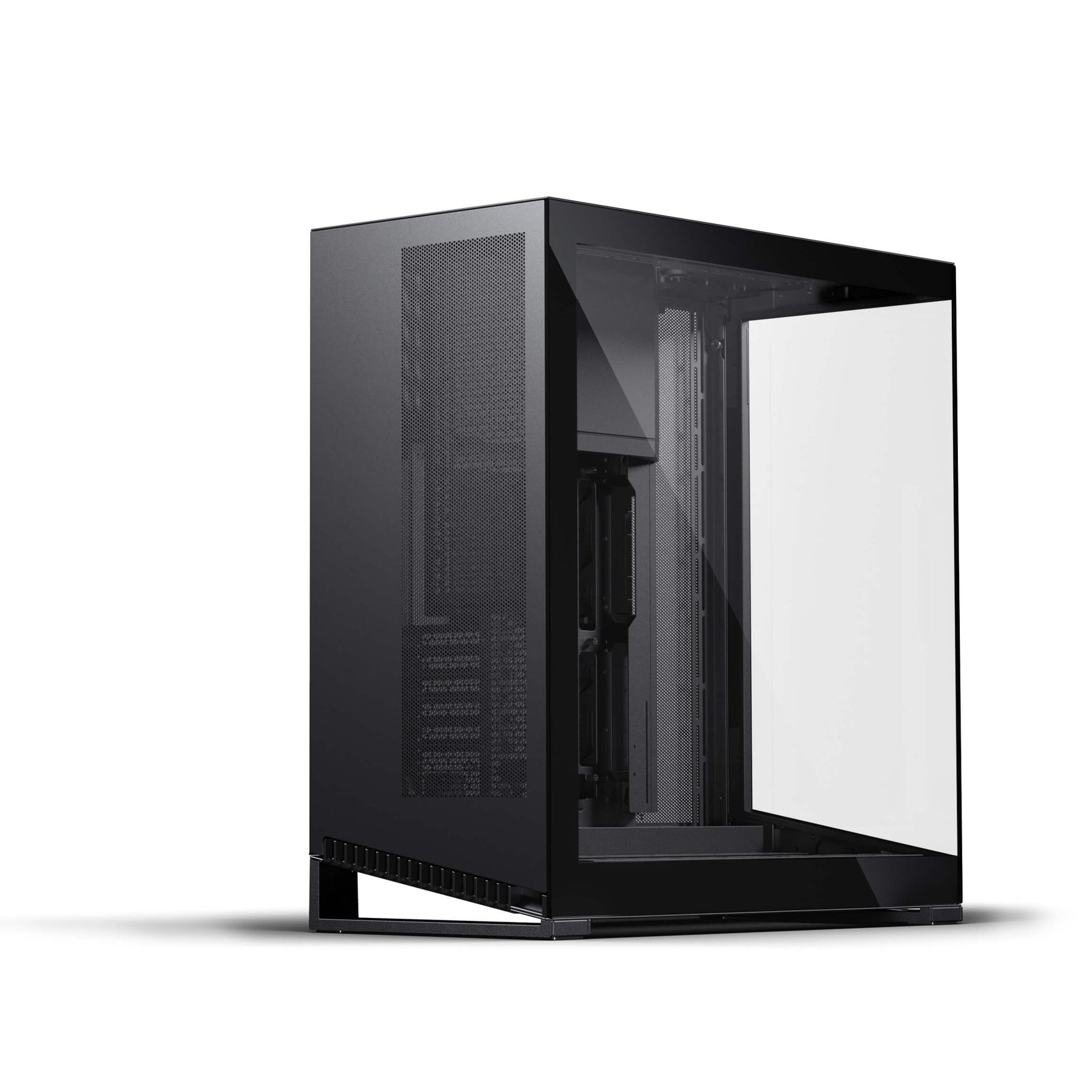

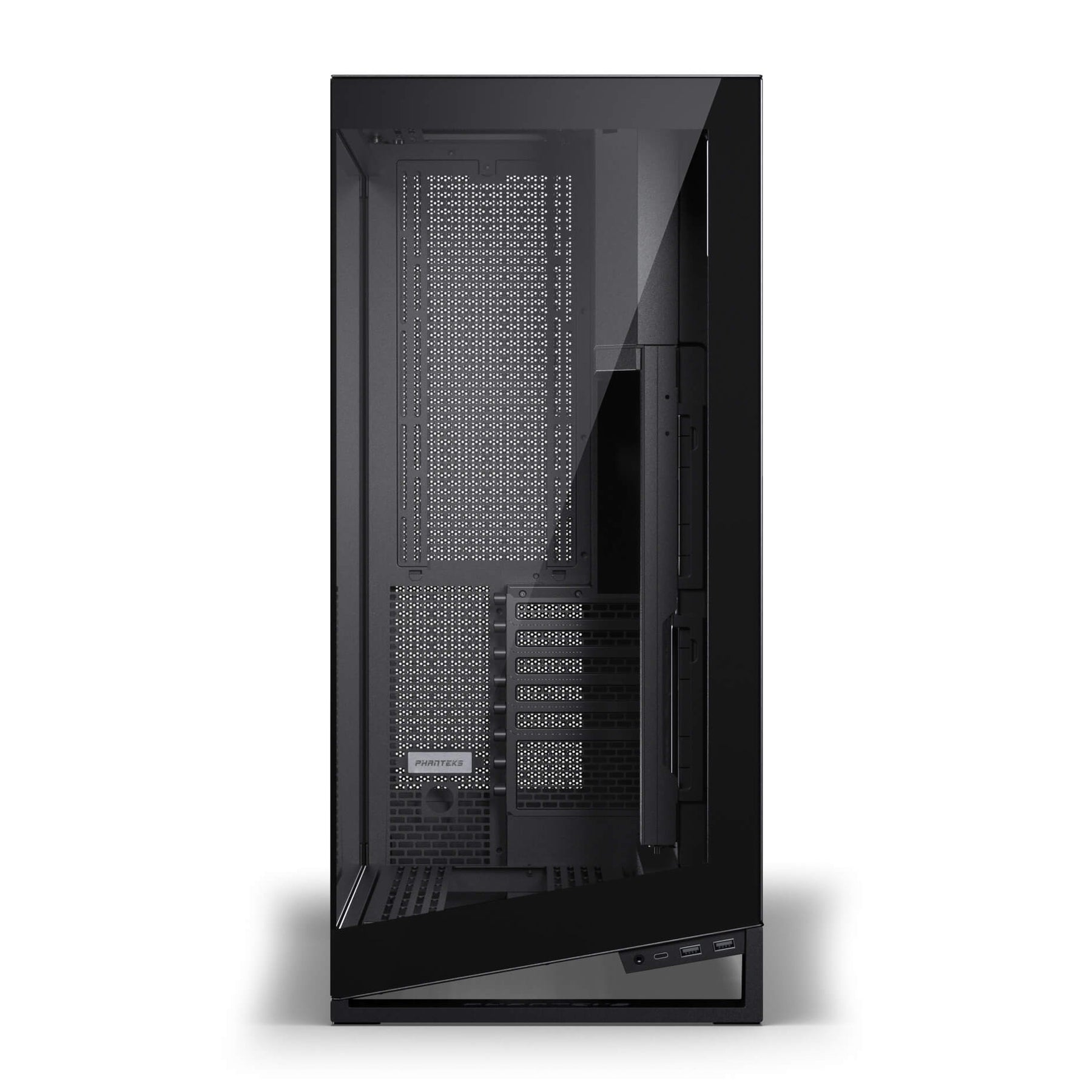

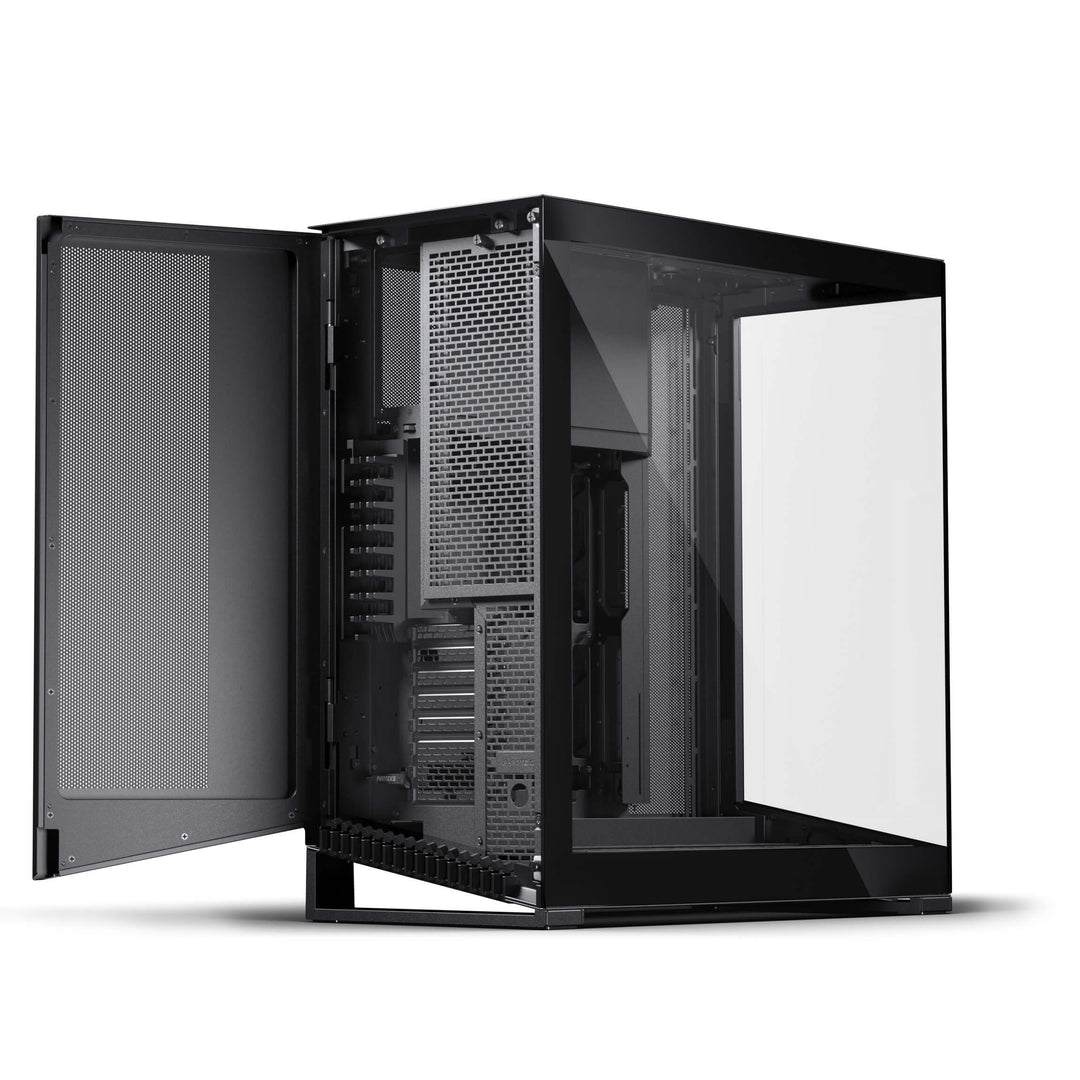

With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
- Near-seamless glass panels for a perfect view of all your system components. Unique layout with the motherboard at the center and fans all around it.

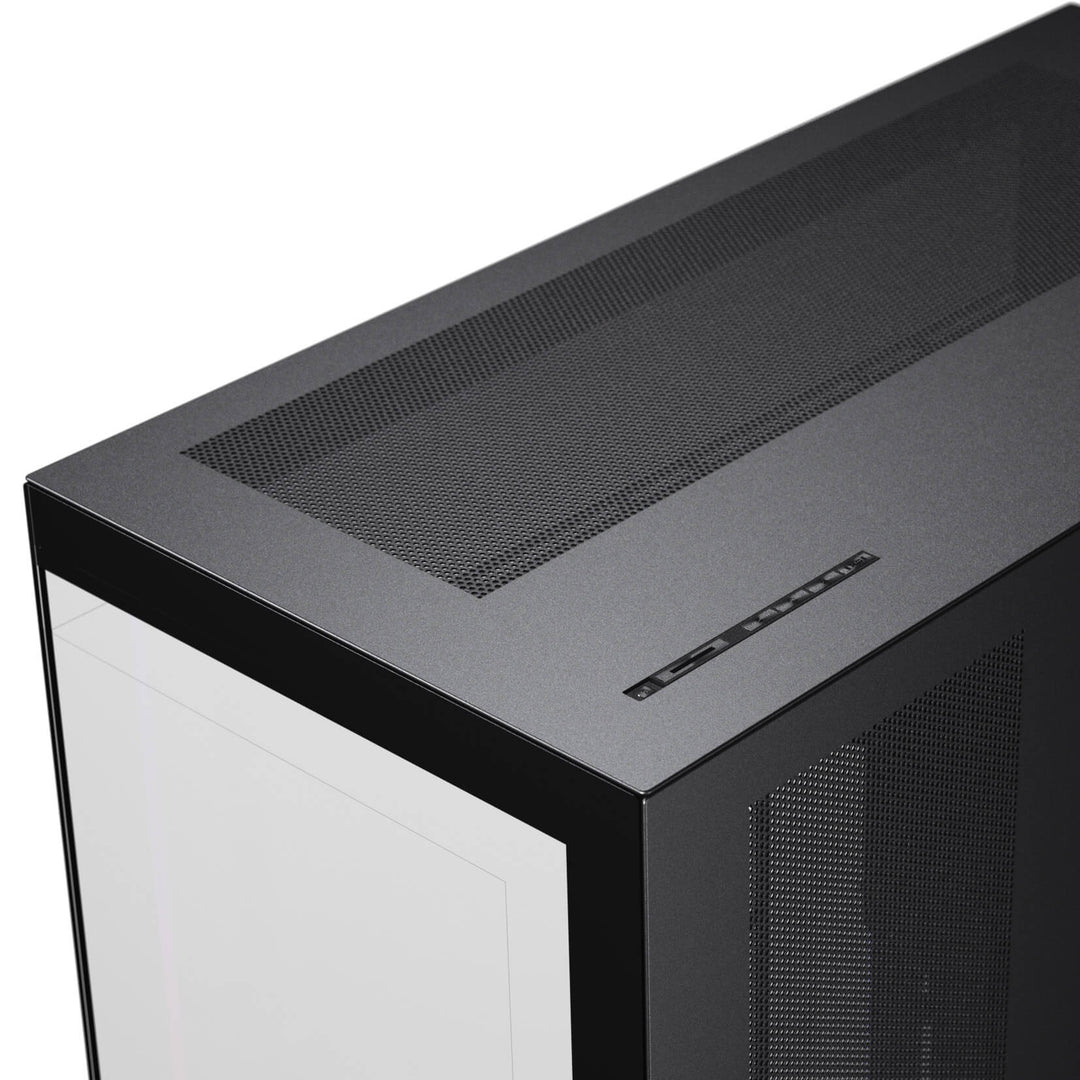

- Ultra-fine Performance mesh on exterior panels. Immense bottom airflow intake with 65mm clearance. Direct and dedicated GPU cooling from the bottom. Extensive cooling support for triple 420+280 radiators simultaneously for high end cooling performance.

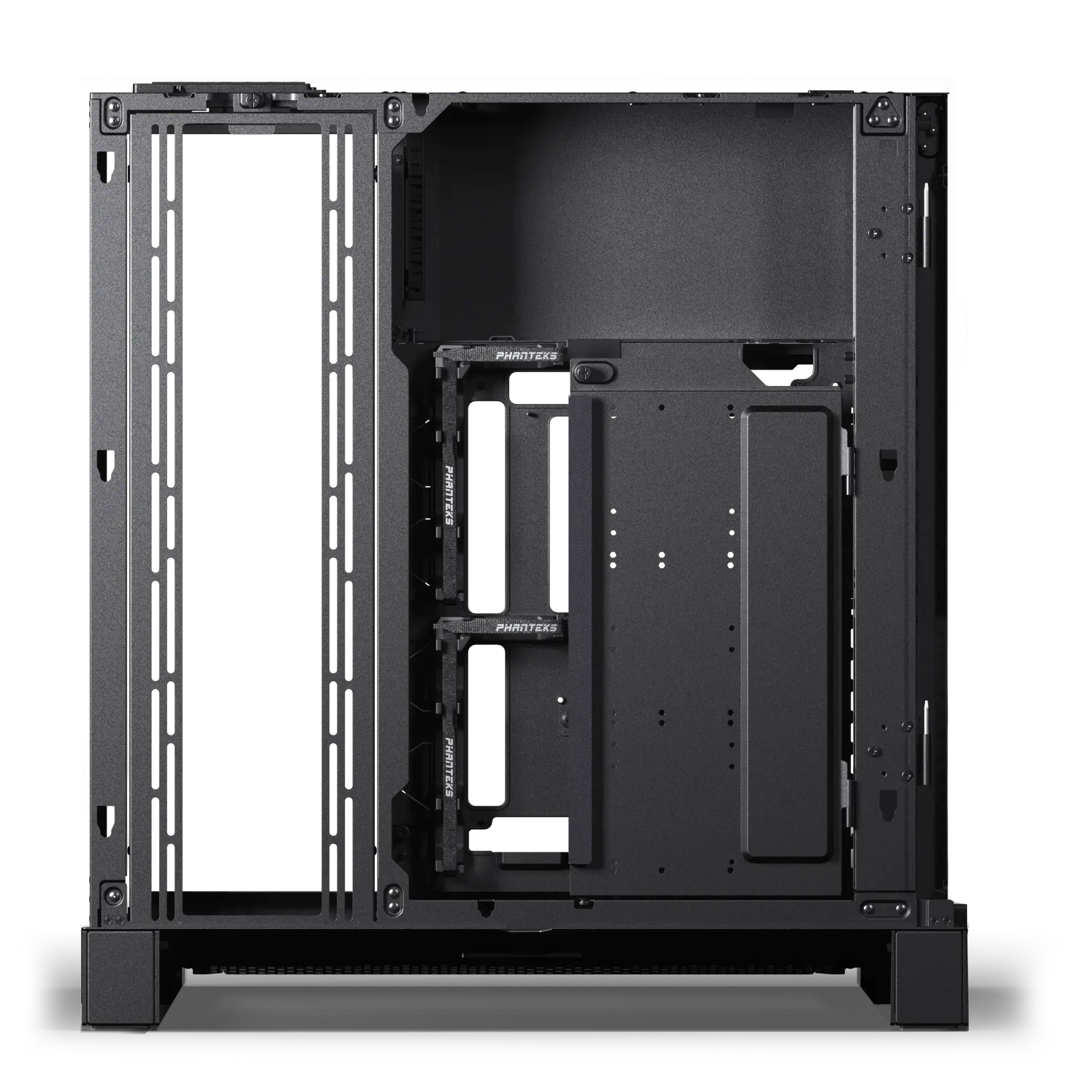

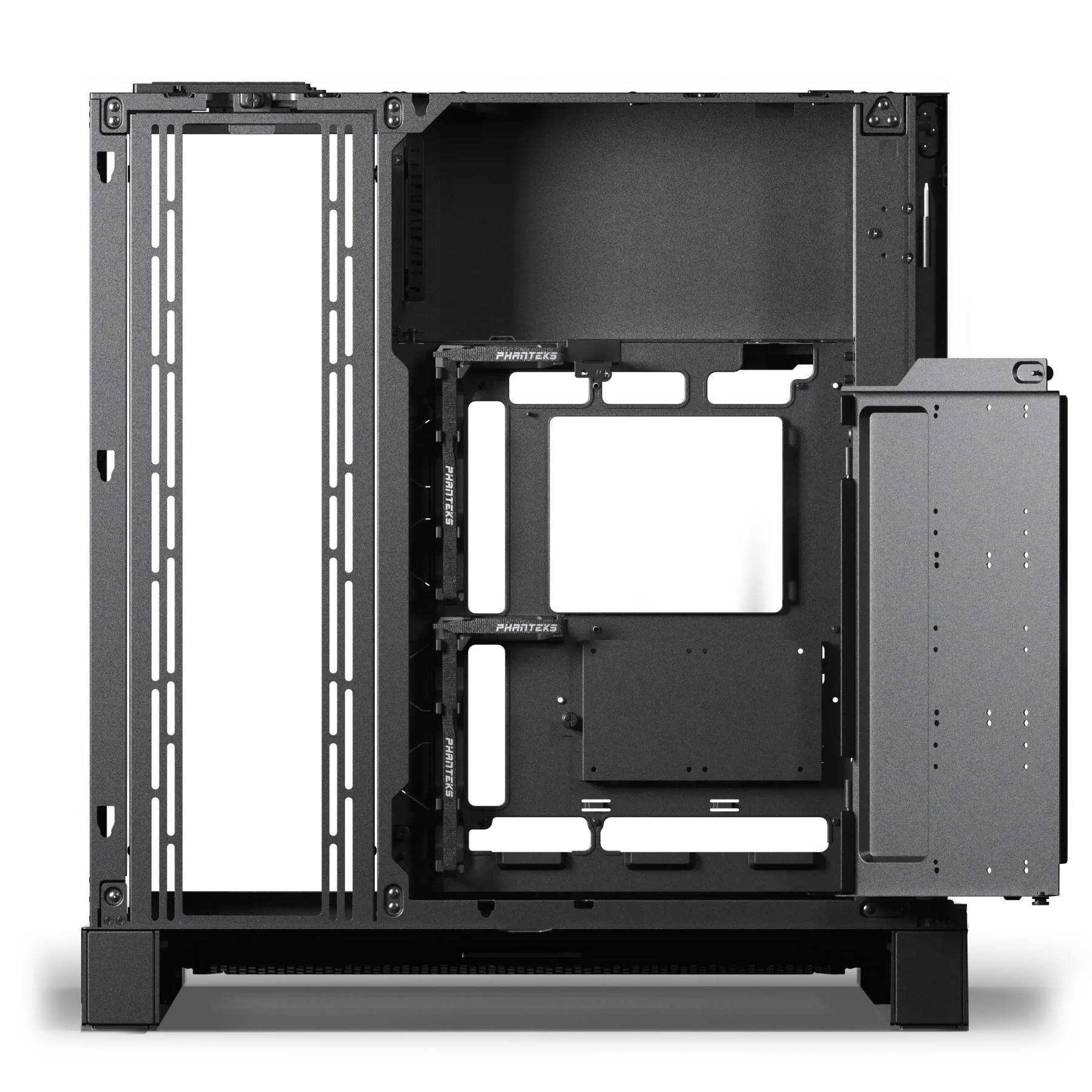

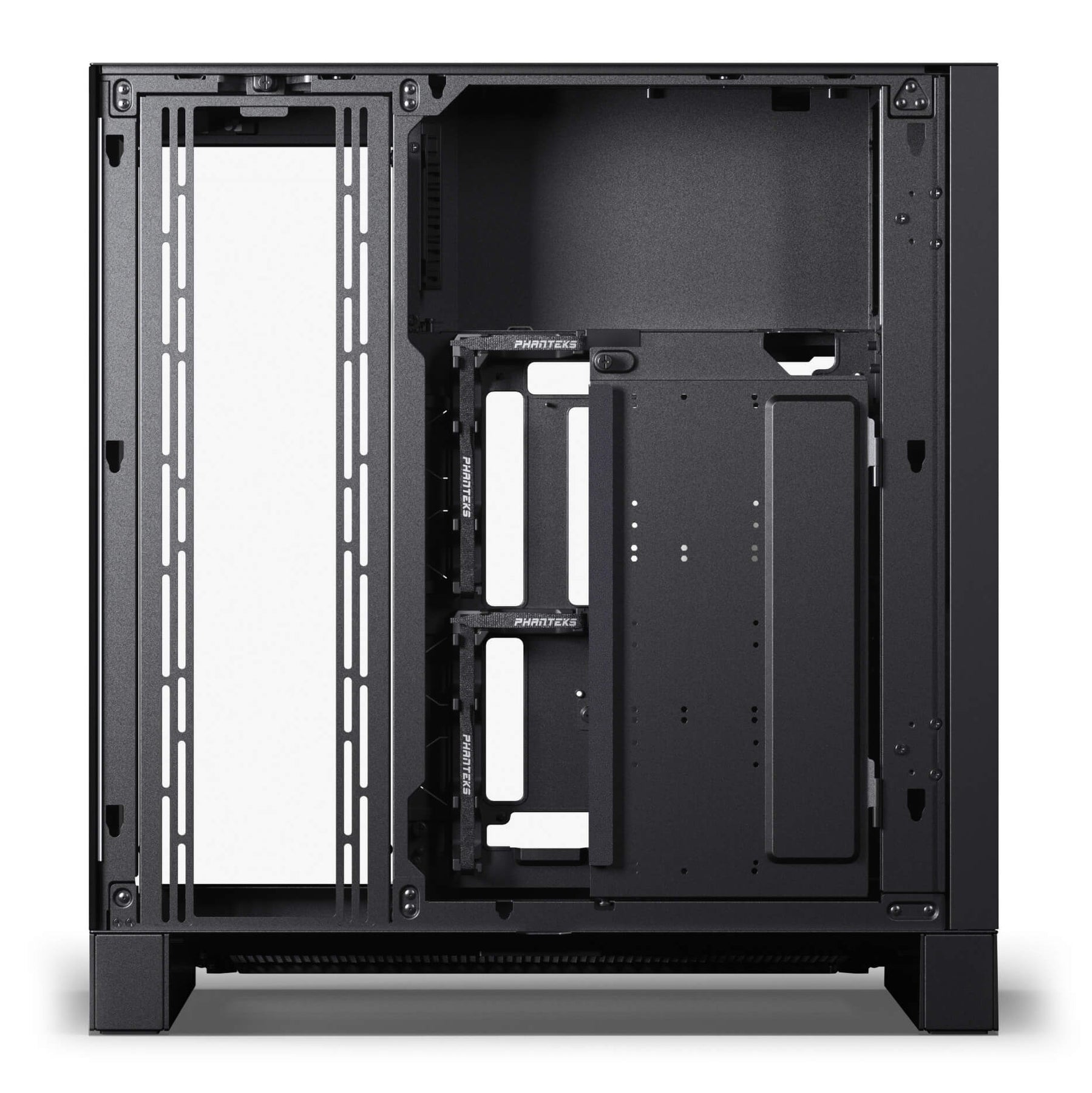

- Versatile GPU support bracket securely holds GPU to motherboard and prevents sag. Removable side and bottom fan bracket for easy installation. Bottom bracket can be reversed for angled or horizontal position.
- Integrated D-RGB lighting around motherboard. Dual channel output to allow for dual color effects. 4 output and dual SATA power to expand. Refined D-RGB lighting effects that works without software. Compatible with third party software with included cable.
|
Case Specifications |
|
|
|
|
||
|
Dimension |
575 x 280 x 615 mm / 22.63 x 11.02 x 24.21 in (DxWxH) |
|
|
Form Factor |
Full Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass |
|
|
Motherboard Support |
ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 280mm wide) Reverse motherboard connectors |
|
|
Front I/O |
2x USB 3.0, USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel |
|
|
Connectors |
Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E, Power LED |
|
|
Window |
Yes, Front and Side Tempered Glass |
|
|
|
||
|
Expansion & Drive Bays |
||
|
|
||
|
Expansion slots |
8 |
|
|
Vertical GPU support |
Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01 |
|
|
Internal 3.5” |
Max 3* (3x included) (*Max 24mm HDD height when SSDs installed) |
|
|
Internal 2.5" |
Max 6 (6x included) (*2x if 3x HDD positions are used) |
|
|
D-RGB Controller output |
7A per Channel, 4A per port (Total 14 Watt) |
|
|
|
||
|
Cooling |
120mm fan |
140mm fan |
|
|
||
|
Side |
4x |
3x |
|
Top |
3x |
3x |
|
Rear |
2x |
2x |
|
Bottom |
3x |
3x |
|
|
||
|
Liquid Cooling |
120mm radiator |
140mm radiator |
|
|
||
|
Side |
Up to 480 |
Up to 420 |
|
Top |
Up to 360 |
Up to 420 |
|
Rear |
Up to 240 |
Up to 280 |
|
Bottom |
Up to 360 |
Up to 420 |
|
|
||
|
Clearance |
|
|
|
|
||
|
Graphic card length |
490mm |
|
|
Graphic card width |
205mm |
|
|
CPU cooler height |
205mm |
|
|
PSU length |
210mm |
|
|
Side 360 Radiator |
525 x 154 mm |
|
|
Top 360 Radiator |
515 x 154 mm |
|
|
Rear 240 Radiator |
325 x 154 mm |
|
|
Scope of delivery |
|
|
|
NV9 Chassis |
|
|
|
Dual D-RGB Controller |
1x |
|
|
Top LED Cover |
1x |
|
|
Side LED Cover |
1x |
|
|
Front IO-Module |
1x |
|
|
Storage/Cable bracket |
1x |
|
|
Storage Bracket |
1x |
|
|
Accessory Box |
|
|
|
GPU Support Bracket |
1x |
|
|
Airflow Covers |
2x |
|
|
Microfiber Cloth |
1x |
|
|
Zip ties |
6x |
|
|
Screw Assortment Box |
1x |
|
|
MB/SSD Screw |
34x |
|
|
Thumb Screw |
4x |
|
|
HDD Screw |
9x |
|
|
Standoff Removal Tool |
1x |
|
|
MB stand-off |
1x |
|
|
PSU Screw |
4x |
|
|
Extra R-Side Panel Screw |
1x |
|
