Phanteks D30-120 D-RGB Fan

Name: Phanteks D30-120 D-RGB Fan
Brand: Phanteks
SKU: PH-F120D30_DRGB_PWM_BK01_3P
Price: 29.99 USD
Availability: OutOfStock

Phanteks

Color: Black

Type: 3-pack

Variant

Price:

$89.99

Stock:

In stock, Ships 1-3 Days

Share this product

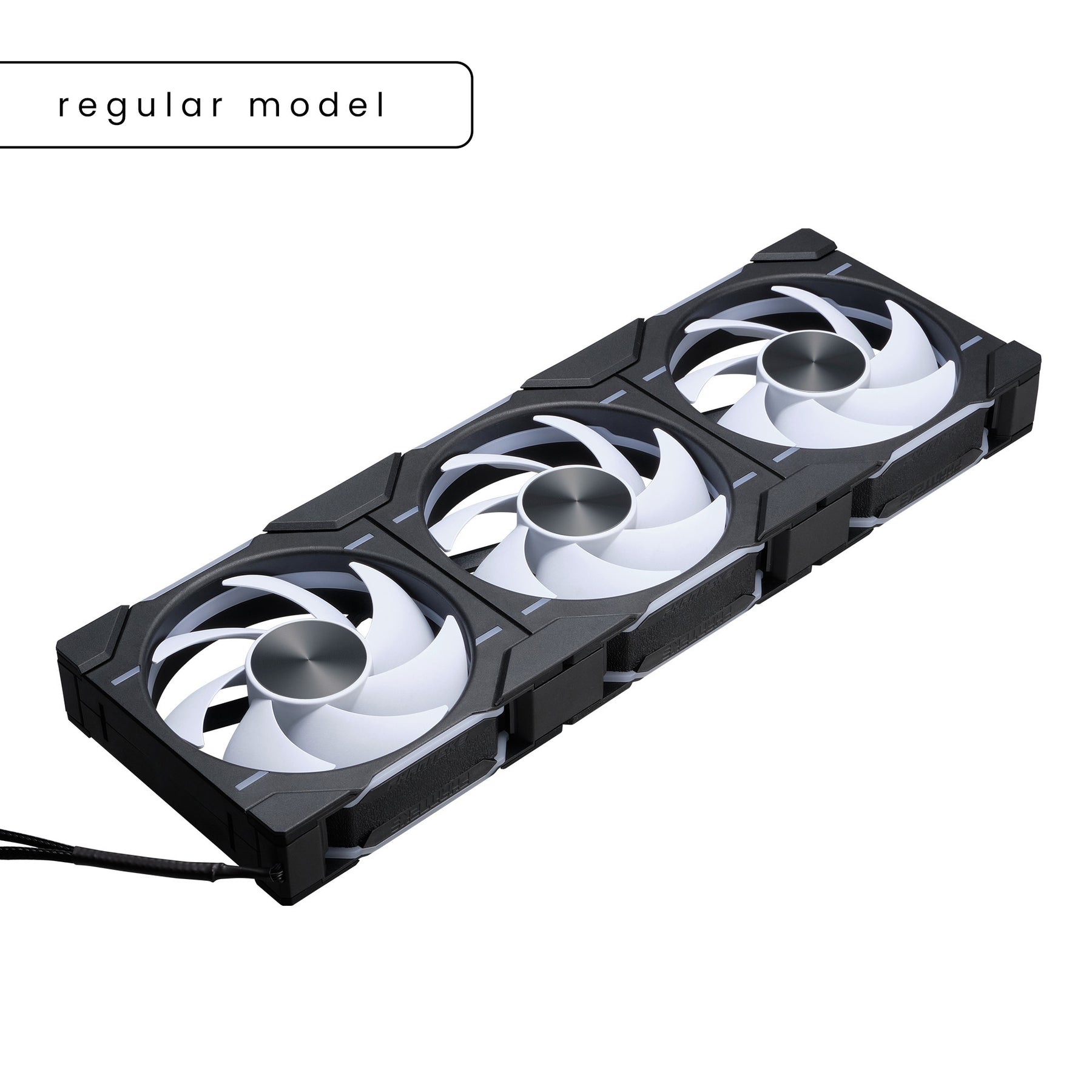

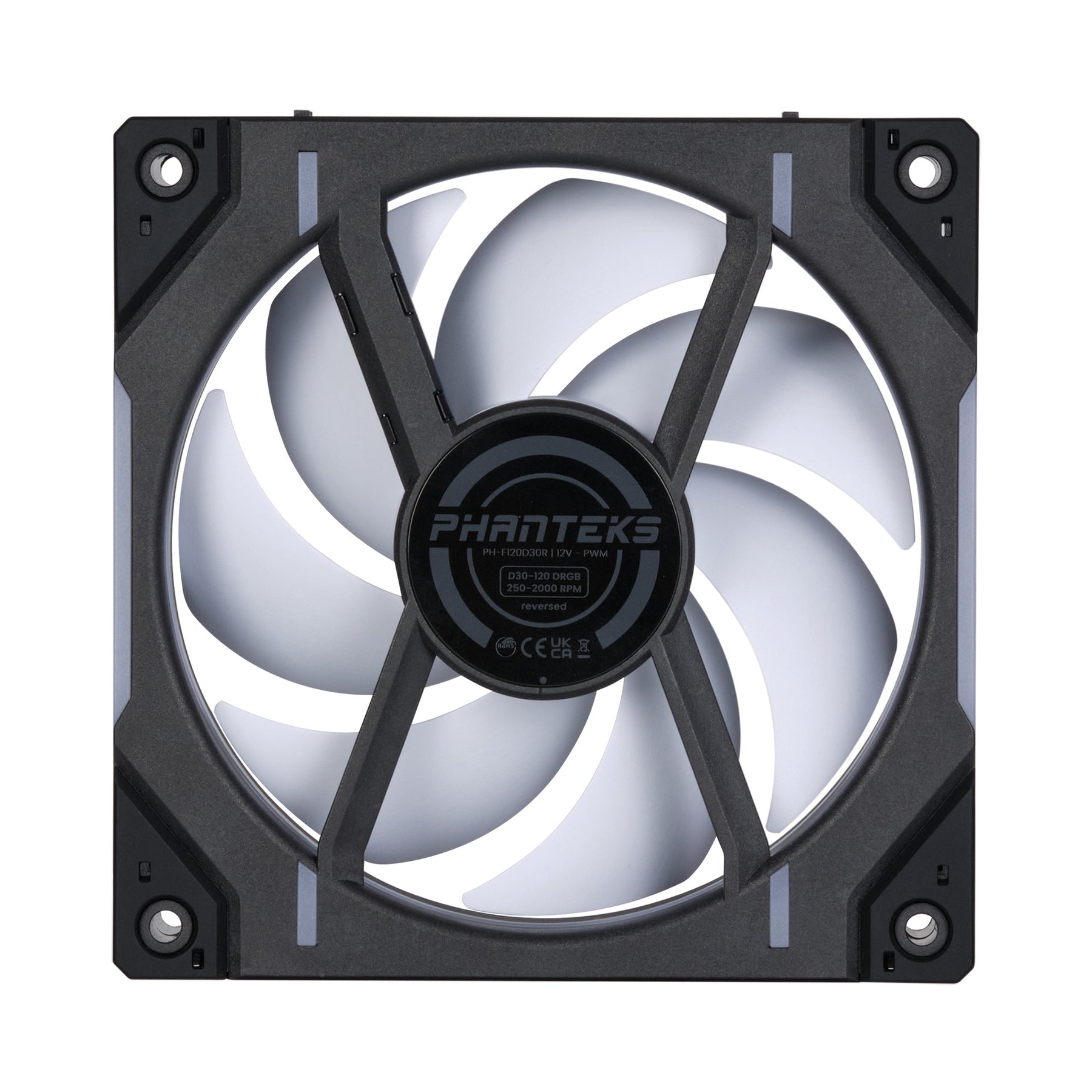

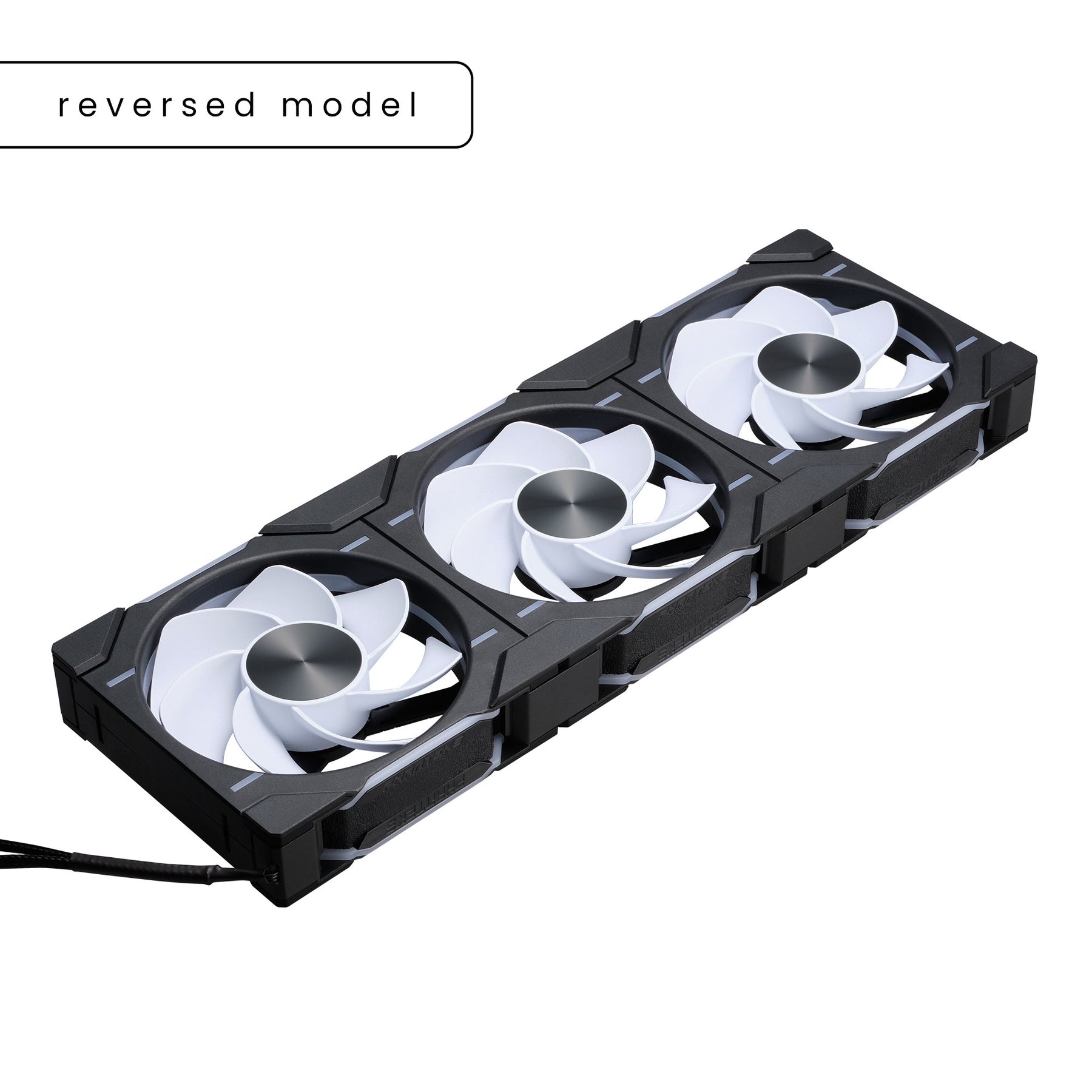

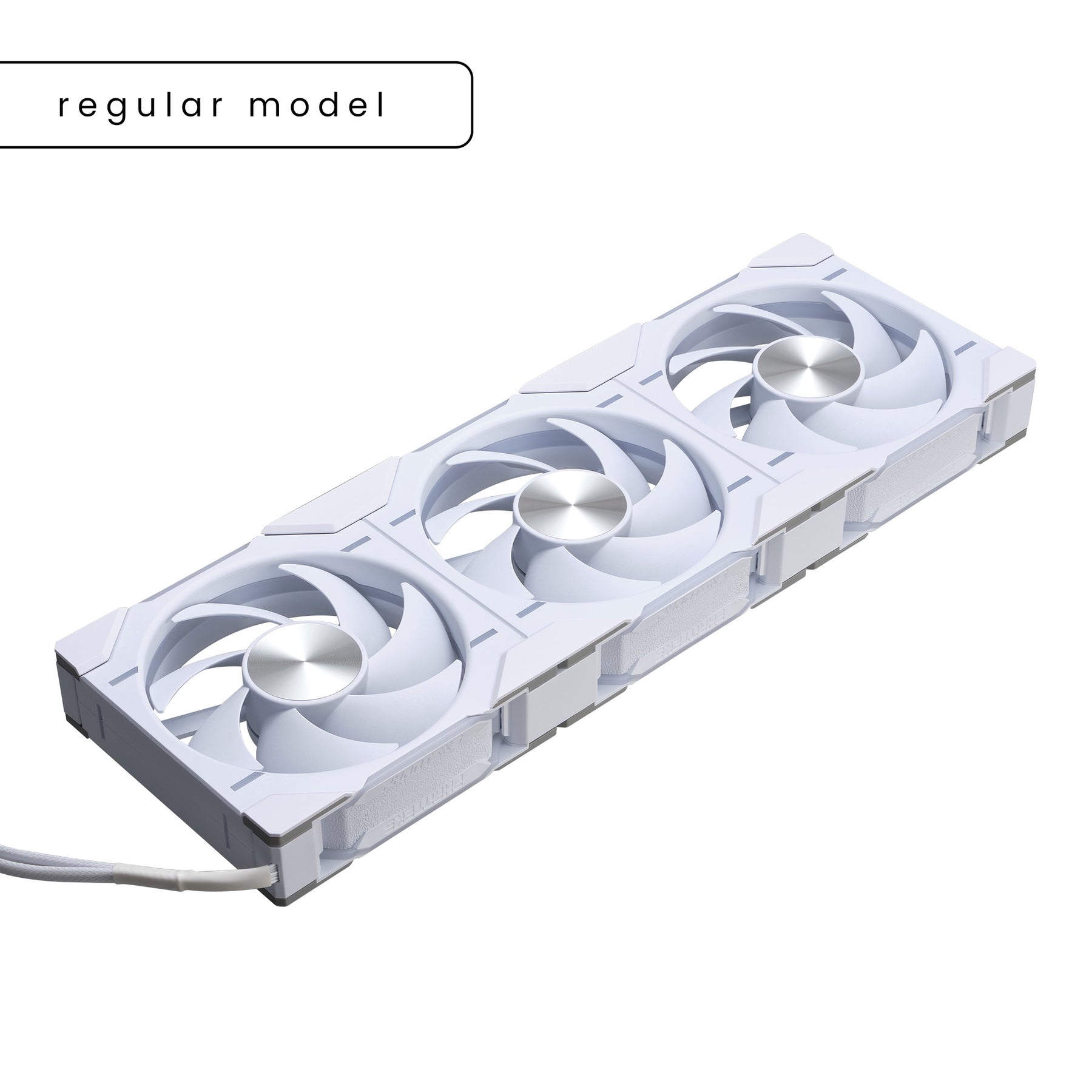

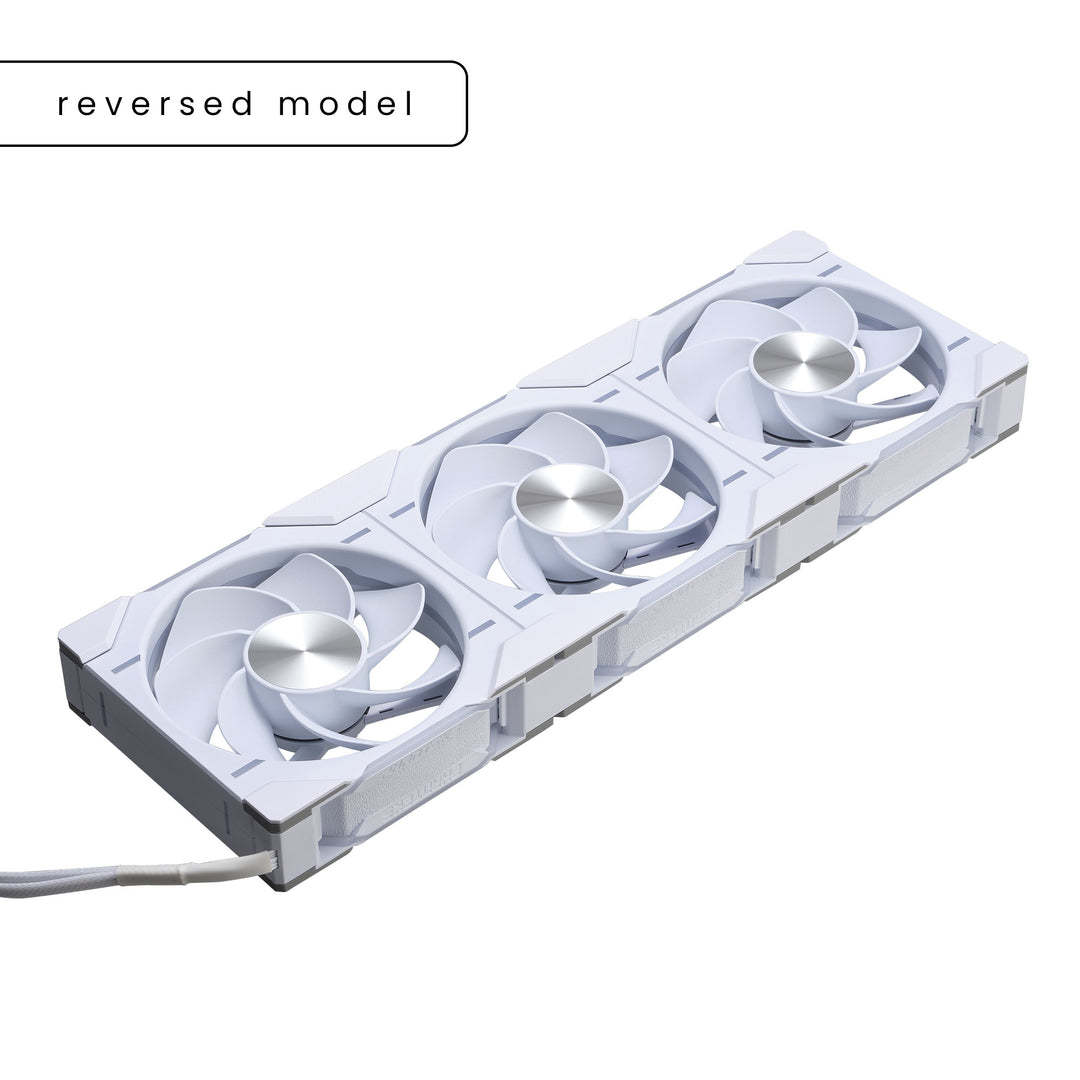

Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.

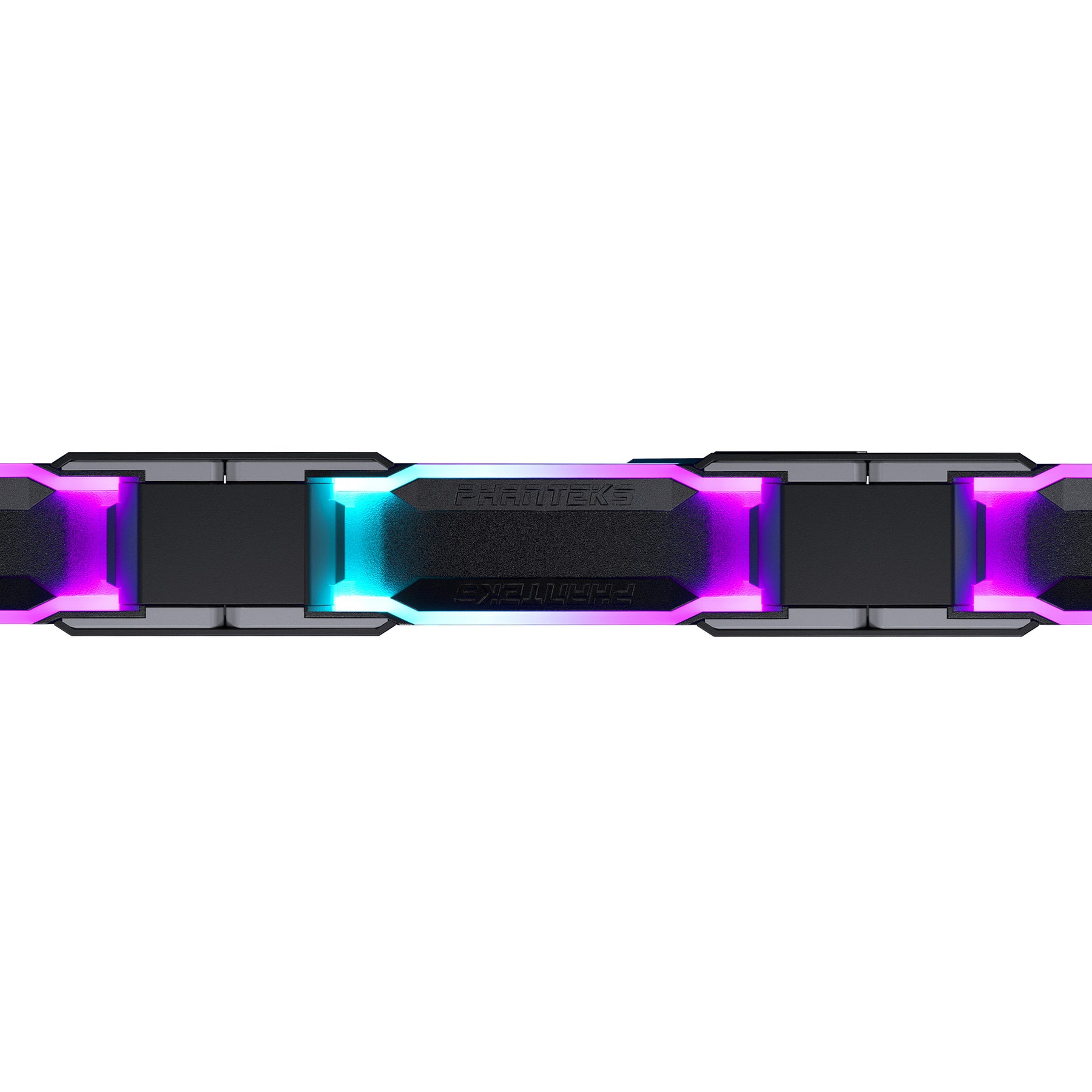

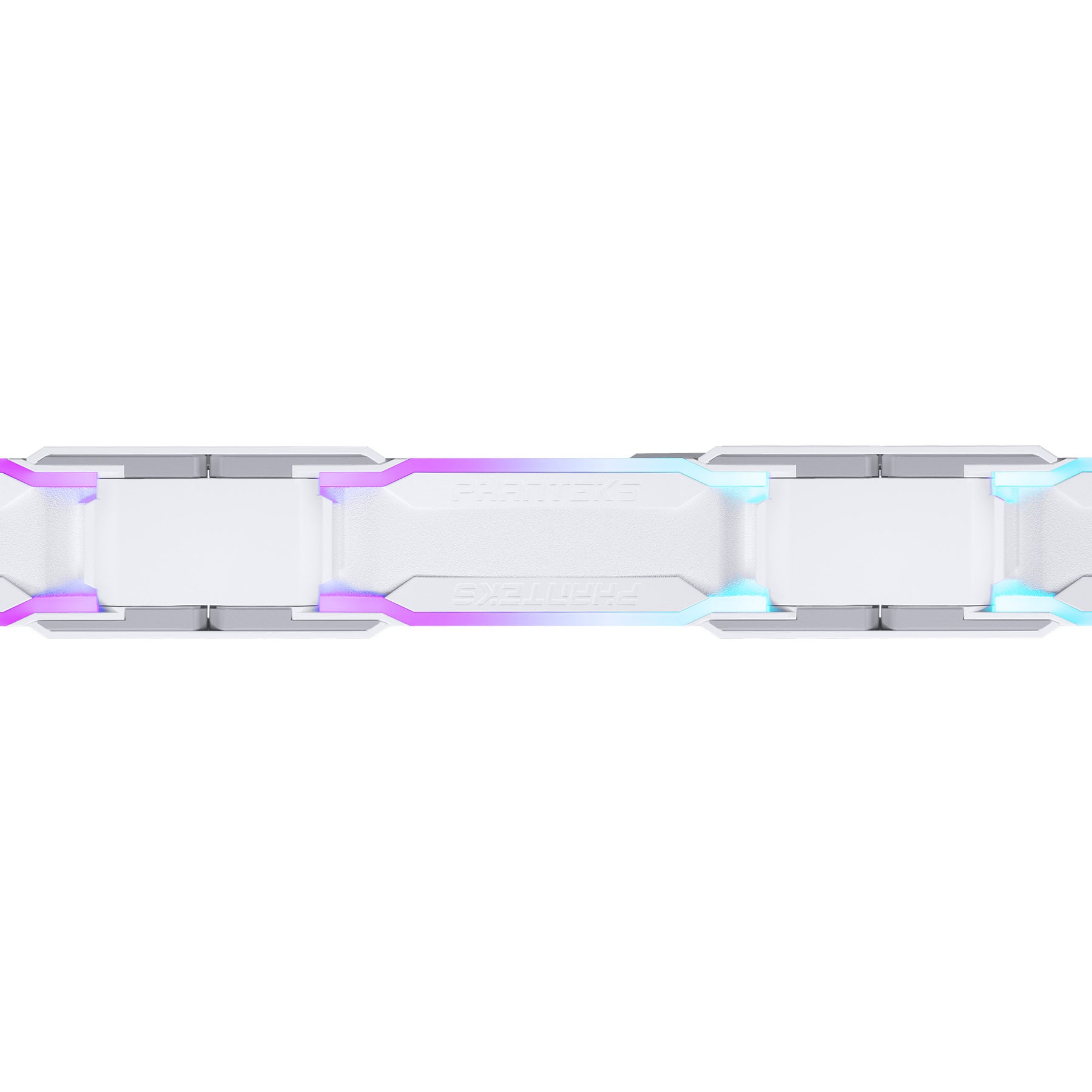

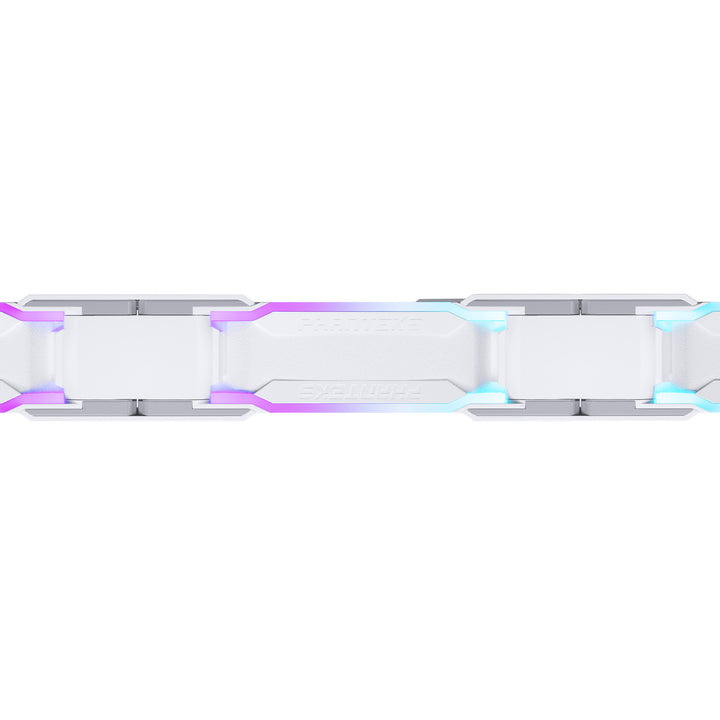

Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.

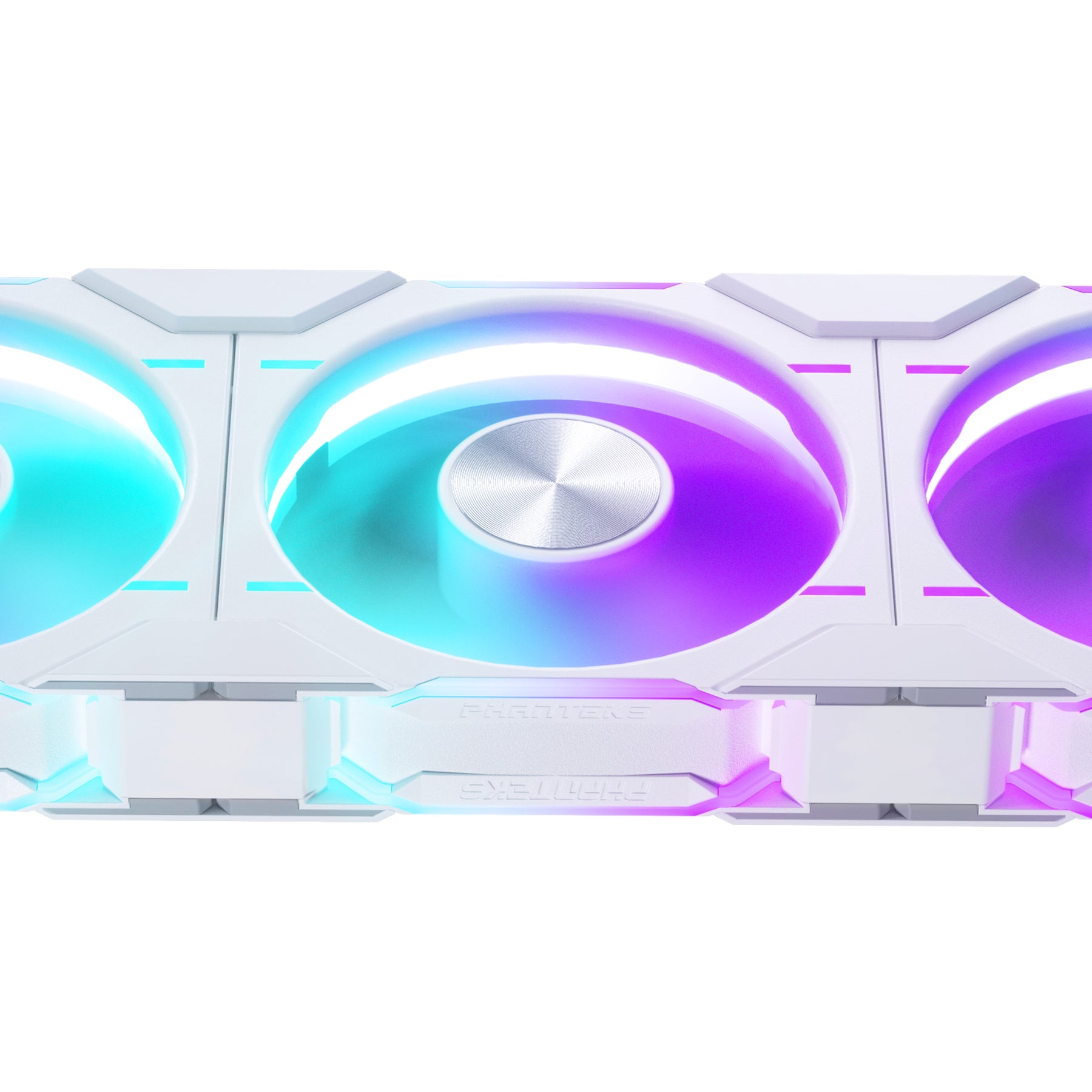

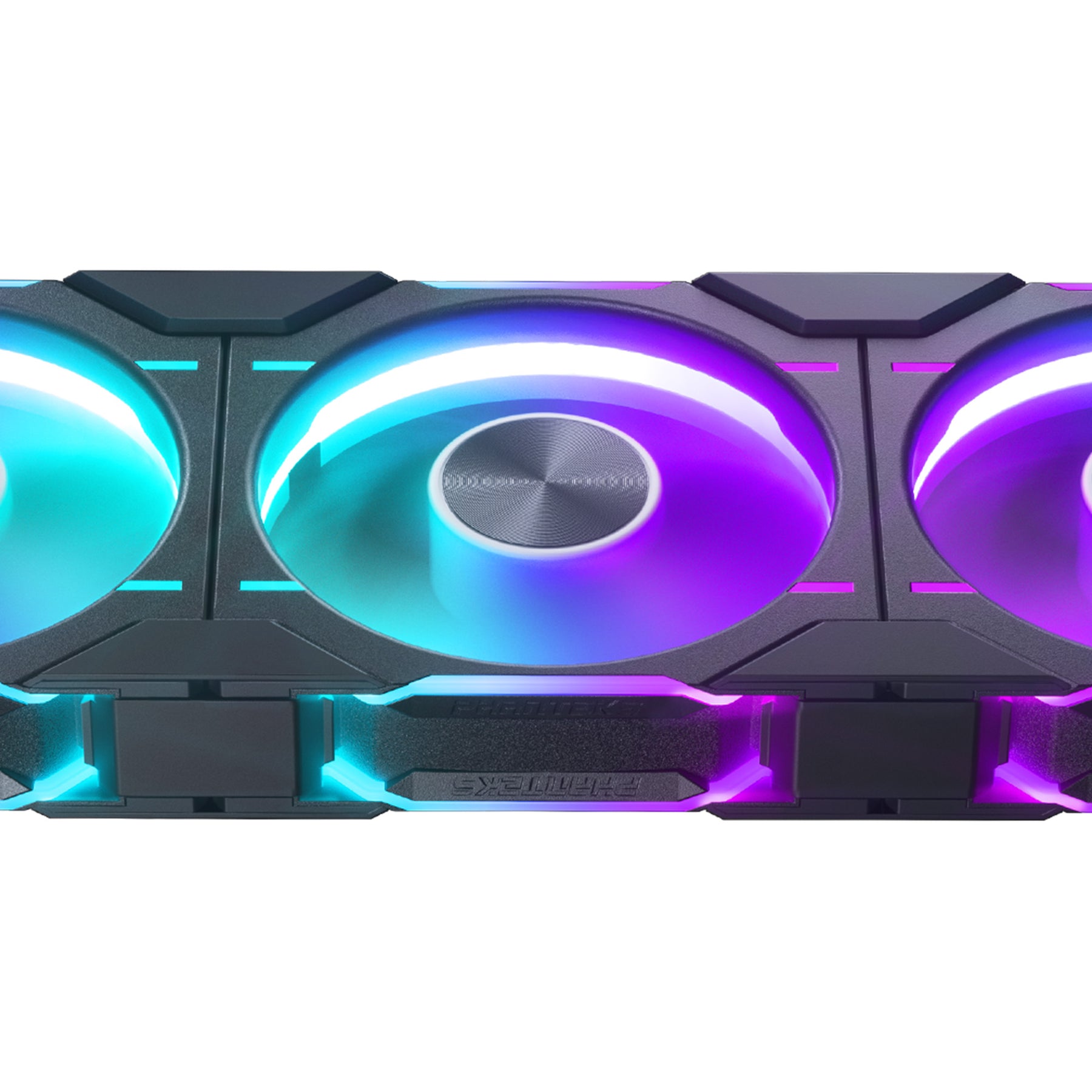

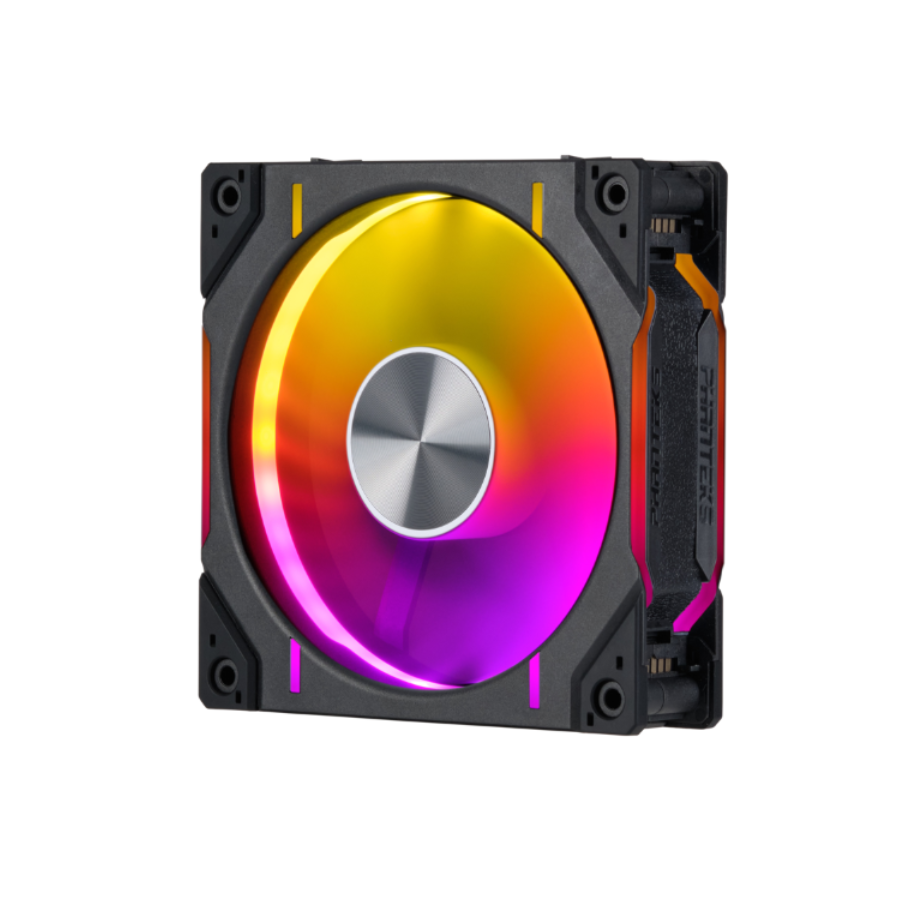

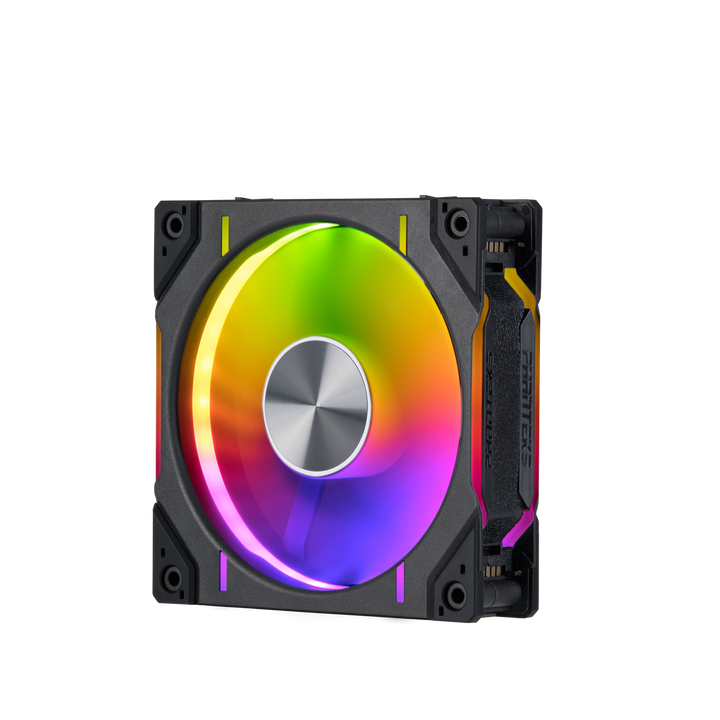

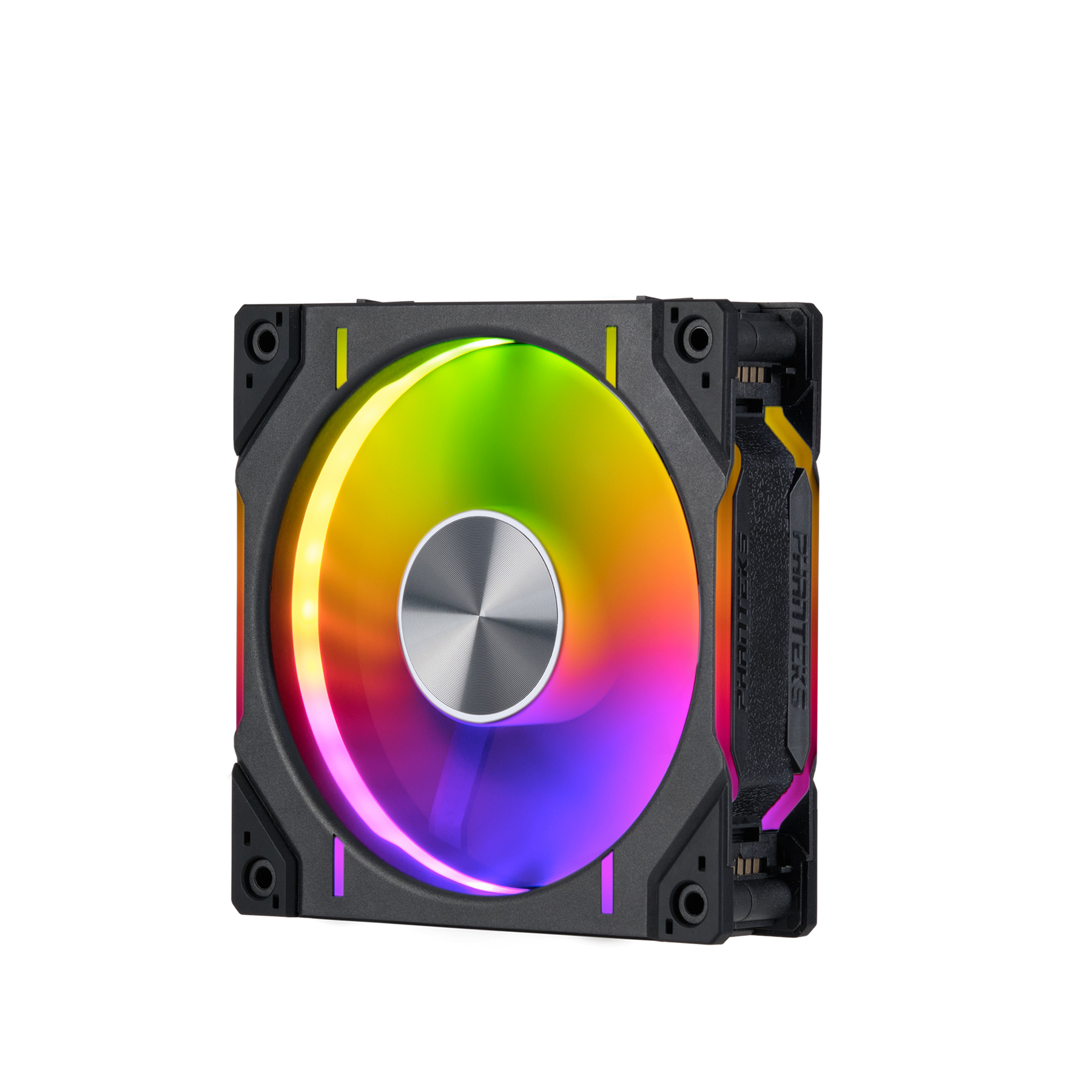

The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.

Description:

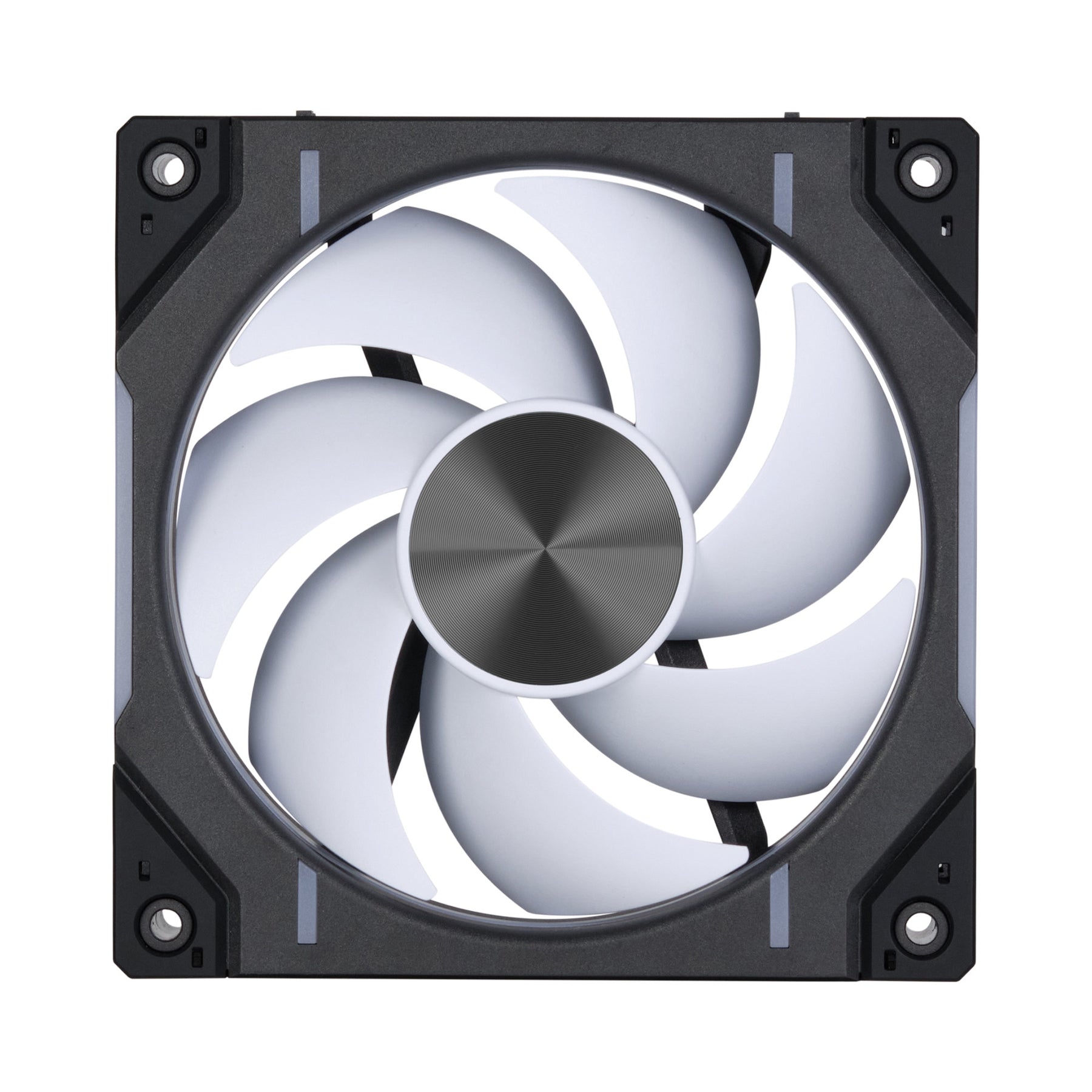

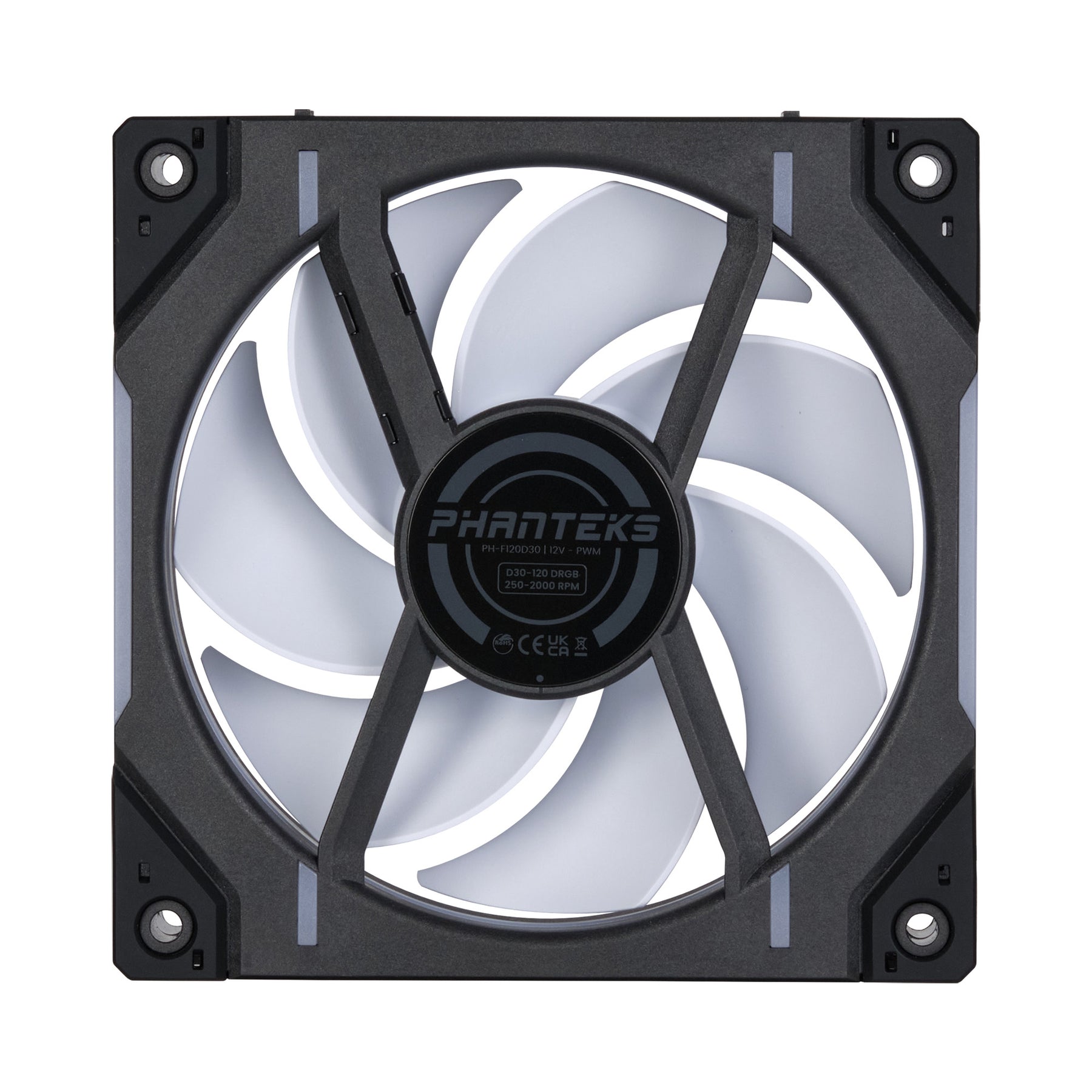

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.

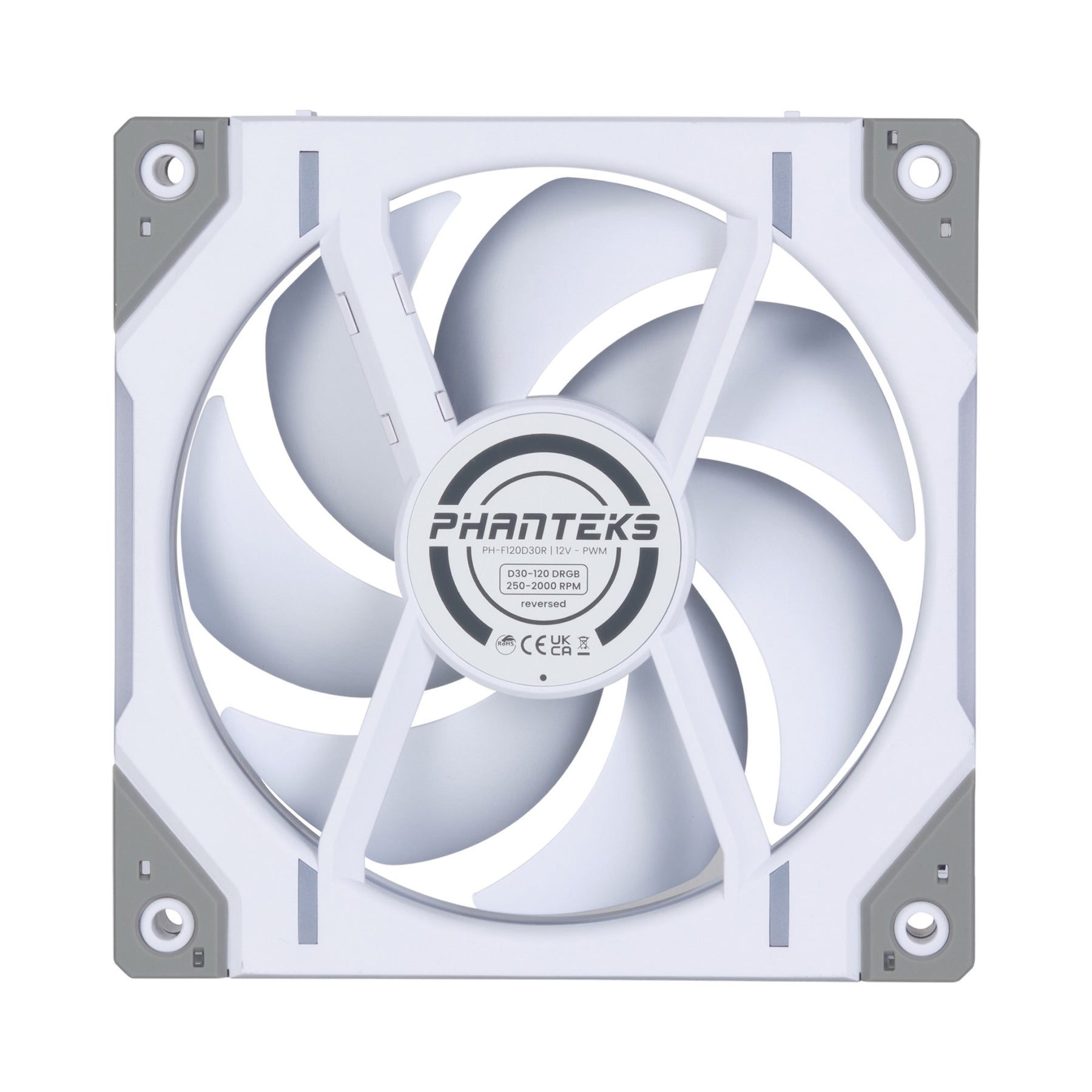

The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.

Brand	Phanteks
Model	PH-F120D30_DRGB_PWM_BK01
Type	Case Fan
Wind Direction	Regular
Color	White Matte blade / Black Fan Frame
Materials:	PBT (Polybutylene terephthalate)
Fan Size	120 x 120 x 30 mm
Bearing Type	FDB (Fluid Dynamic Bearing)
Blade Geometry	Seven Blades Design- White Matte
Rated Voltage	FAN: 12V LED: 5V
Operating Voltage Range	5~13.2V
PWM	Yes
Rated Current (Ampere)	0.15A LED:0.45A(Max)
Locked Current	Polarity Protection
Power Consumption	≦1.8W
Speed	250-2000±10% RPM
Max. Airflow	64.3 CFM
Max. Air Pressure	3.01 mm H2O
Noise Level	30.2 dB(A)
Fan Connector	4-Pin PWN
Fan Cable Length	700 mm / 27.56 in
D-RGB Connector	3-Pin JST Daisy-chain
D-RGB Cable Length	600+100 mm / 23.62+3.94 in
LED Number	30 (D-RGB)
LED Rated Voltage	DC 5V (+5V/D/GND)
LED Rated Current	Max:0.45A
MTBF (Life Expectance)	50,000hrs at 40℃

Return Policy
ALL RETURNS MUST HAVE A RETURN AUTHORIZATION NUMBER SUPPLIED BY PHANTEKSUSA.com. You must call 1-909-598-2115 and speak to a return specialist or email support@phanteksusa.com for authorization. PhanteksUSA.com will authorize returns under the following conditions:
A.   Customer Responsibility- Customer responsible for all return shipping costs, IF:
   1. Customer cancelled order after unit has shipped from PhanteksUSA.com.
   2. Customer refuses unit at time of delivery for any reason other than damaged package.
   3. Customer can not be reached or does not contact the shipping company back within 3 attempts of initial contact. At which point PhanteksUSA.com will determine the unit undeliverable.
   4. Buyer's Remorse - Authorization to return the unit must be made within 30 days from receipt of product.

All original packaging must accompany the returned product to avoid a restocking fee. A 15% restocking fee will apply for missing or damaged packaging or accessories.

B.   PhanteksUSA.com's Responsibility - PhanteksUSA.com will assume all shipping charges, IF:
      1. Noted visible packaging damage and refused delivery. Customer should contact PhanteksUSA.com to inform them of refused delivery. No Return Authorization will be issued in this situation (damage of package must be noted on delivery receipt).
     2. Noted visible packaging damage received delivery (damage of package must be noted on delivery receipt).
     3. Customer received unit other than what he/she ordered.

Refund/Exchange Policy

Refunds

Customers with a return will be refunded once the unit is received back by PhanteksUSA.com. Please allow 4-6 weeks for refunds to be processed.

Exchanges

A security deposit will be required for all exchanged units. The security deposit funds will be refunded once the returned unit has been received back by PhanteksUSA.com.

Flimsy plastic

I got these because I bought into everyone telling me a thicker 30mm fan from Phanteks was the way to go. Since I already had a phanteks case I figured I should stay with the brand, but I couldnt even install these fans because just trying to initially attach the power connector to the input corner proved to be too much strain for the flimsy plastic connector. I want to preface this by saying when it comes to technology I take extra care to be as gentle and cautious as possible in order not to break anything or incorrectly install components. Just trying to connect the cable for the power that snaps into place on the input corner caused both of the connectors to break a tiny plastic tab they use to set in place. So I can't even use the fans now. I even tried to be extra EXTRA careful after the first one broke snapping into place because, afterall I only need one cable, and figured surely they wouldnt both be that poor quality, but it was for nothing.

Really well packaged and very easy to put together.

Really well packaged and esay to put together.

Really well packaged and very easy to put together.

Great fan

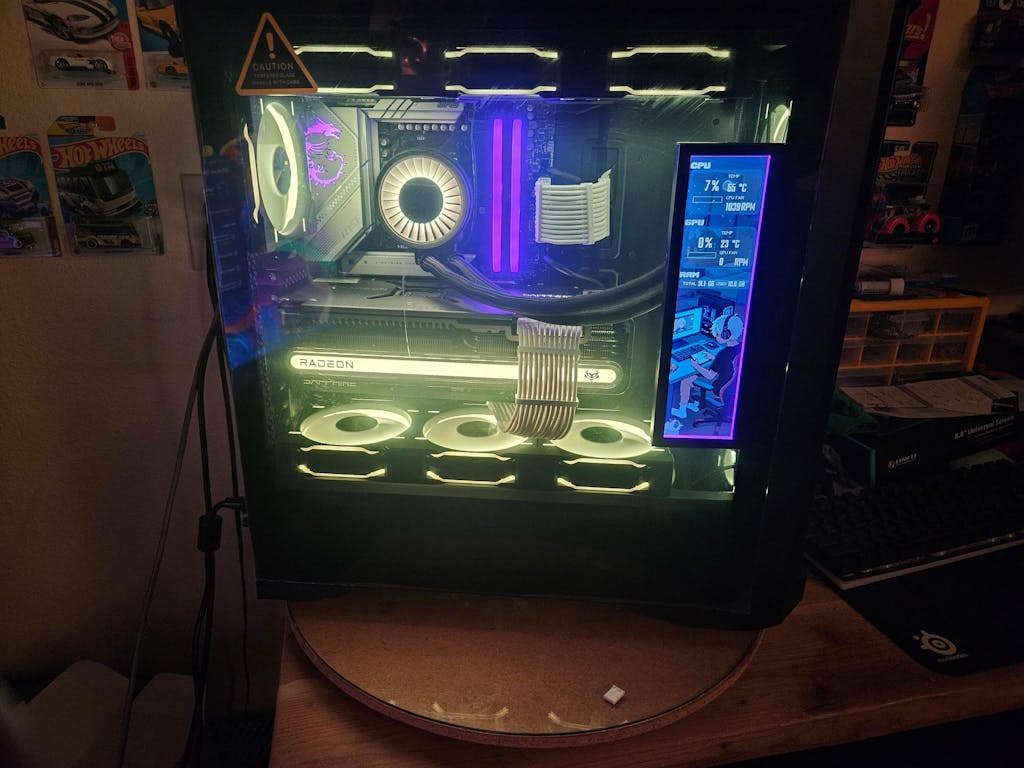

These are a great fan for starters easy to get mounted properly and hooked up the RGB is a bit of a pain to get going but what RGB isn’t annoying to mess with. They look beautiful and run pretty quiet at high speeds running 7 of them in my NV5 Mk2 build
