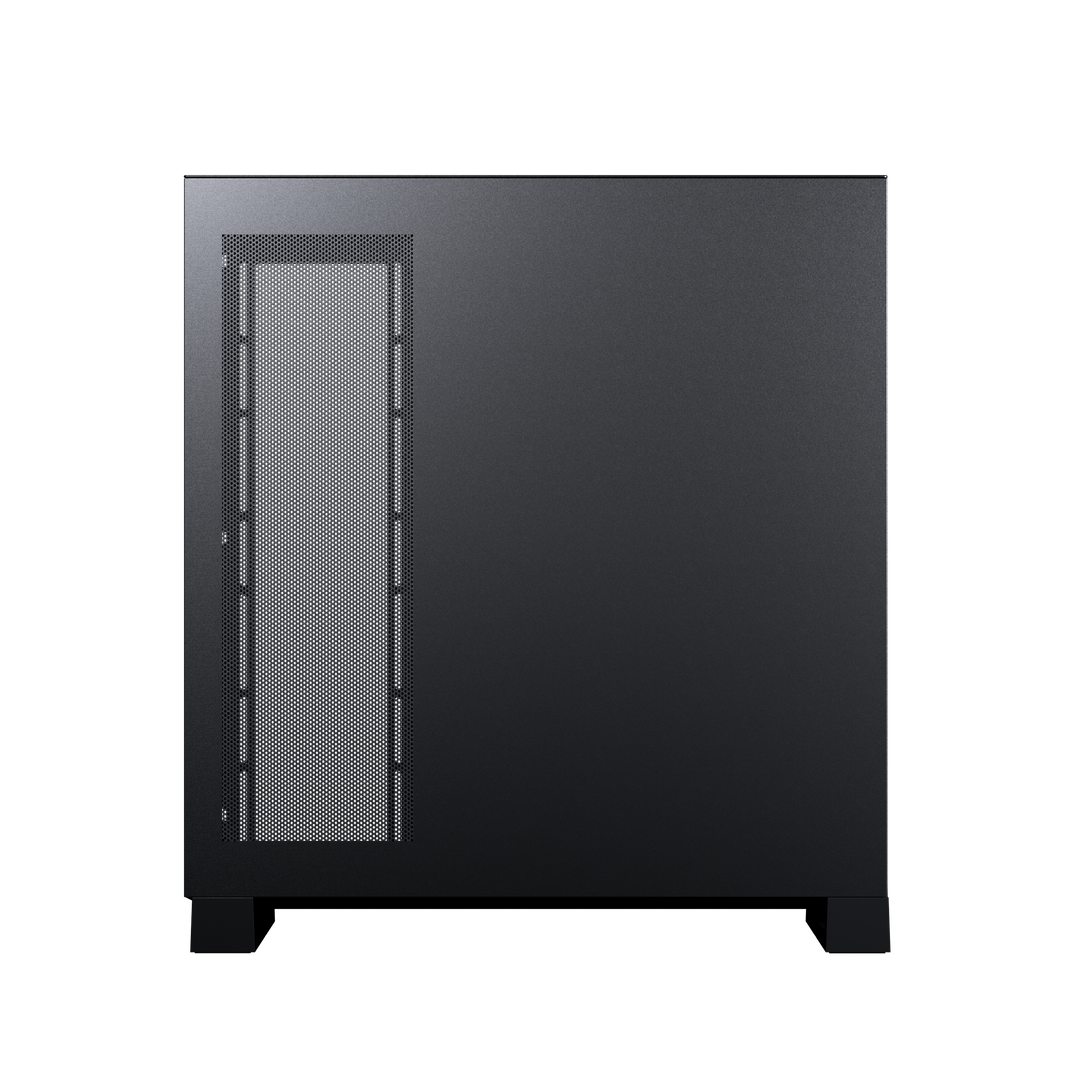

Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.
Its PSU cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.
CASE SPECIFICATIONS
Dimensions:239 x 477 x 528 mm / 9.4 x 18.8 x 20.8 in (WxDxH)
Form Factor:Mid Tower
Materials:Steel Chassis, Tempered Glass
Motherboard support:ATX, micro-ATX, mini-ITX, E-ATX (up to 280mmwithout GPU Support Bracket) Reverse motherboard connectors
Front I/O:2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color
Connectors:Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E
Window:Yes, Front and SideTempered Glass
Expansion & Drive Bays
Expansion Slots: 7
Vertical GPU Support: Yes, with optional bracket PH-VGPUKT4.0_03
Internal 3.5": 3
Internal 2.5": 4
D-RGB Controller Output: 7A Max
Cooling
120mm fan
140mm fan
Side
3x
-
Top
3x
-
Rear
1x
-
Bottom
1x
-
Liquid Cooling
120mm radiator
140mm radiator
Side
Up to 360
-
Top
Up to 360
-
Rear
Up to 120
-
Bottom
-
-
Clearance
Graphics Card Length:440mm
CPU Cooler Height: 170mm
PSU Length: 230mm
Side 360 Radiator: 130x420x62mm
Top 360 Radiator:134x430x62mm
Rear 240 Radiator: 132x170mm
